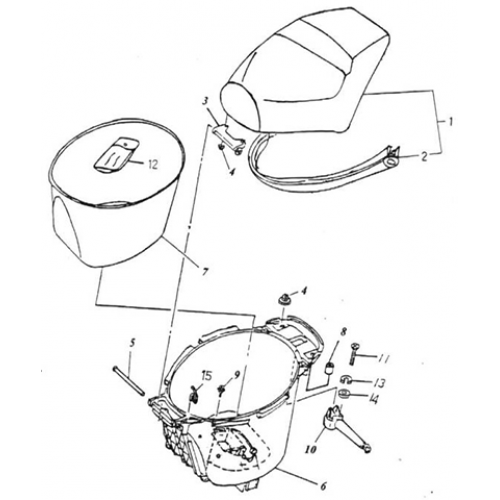

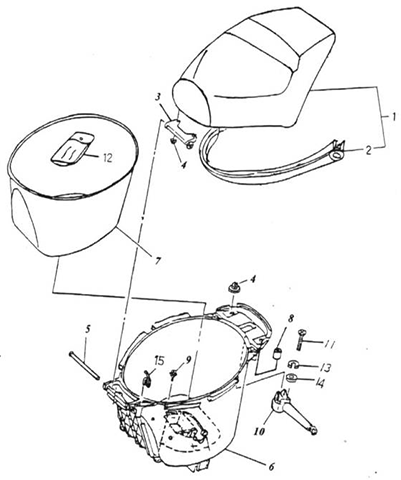

Seat (Thunder Bike 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat Ass'Y, ADLY
77200-125-00C
|
|||
| 2 |
Seal
77209-116-000
|
$13.64 $10.23 | ||
| 3 |
Seat Bracket
77201-116-000
|
$5.86 $4.39 | ||
| 4 |
Hex Flange Nut, 6mm
94050-06000
|
$0.84 $0.63 | ||
| 5 |
Seat Fix Shaft, 10*115
77203-116-000
|
$3.35 $2.51 | ||
| 6 |
Helmet Box
77207-116-001
|
$56.67 $42.50 | ||
| 7 |
Helmet Box Mat
77208-116-000
|
$37.81 $28.36 | ||
| 8 |
Rear Carrier Space
81304-116-001
|
|||
| 9 |
Ladder Bolt, 6*12*3.8
90111-06012-10K
|
$1.67 $1.26 | ||
| 10 |
Seat Lock Ass'Y
77230-116-000
|
$29.00 $21.75 | ||
| 11 |
Pan Phillips Bolt, 6*40
93500-06040B
|
$0.67 $0.50 | ||
| 12 |
Tool Bag
50120-101-000
|
$8.05 $6.04 | ||
| 13 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 $0.38 | ||
| 14 |
Plain Washer, 6*14*2
94101-0614020B
|
$0.59 $0.44 | ||
| 15 |
Helmet Hook
77106-125-000
|
