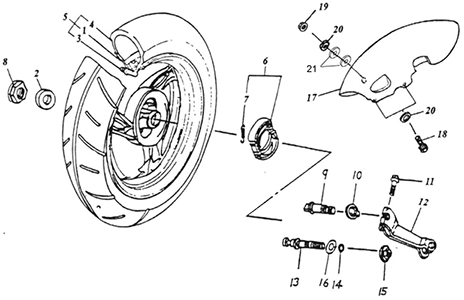

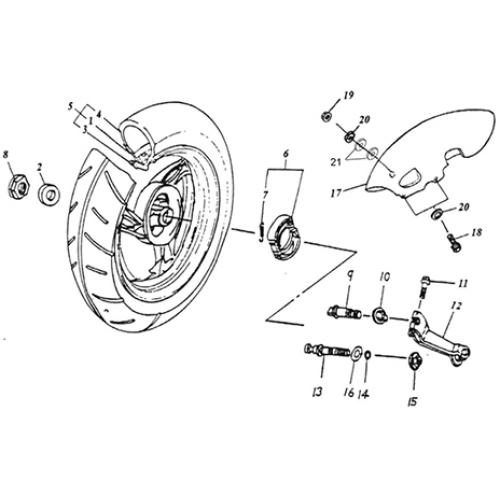

Rear Wheel (Thunder Bike 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
l.Rear Rim, AL. 12
42801-125-00DSL
|
$132.37 $99.28 | ||
| 2 |
Plain Washer, 15*29*3
94105-1529030G
|
$2.85 $2.13 | ||
| 3 |
Air Nozzle
42616-104-000
|
$7.32 $5.49 | ||
| 4 |
Front/Rear Tire 120/70-12 DM-1017
42711-121-00B
|
|||
| 5 |
Rear Wheel Set
42812-125-00D
|
|||
| 6 |
Rear Brake Shoe Ass'Y
43120-110-001
|
$34.64 $25.98 | ||
| 7 |
Rear Brake Shoe Strain Spring
43151-104-000
|
$1.34 $1.00 | ||
| 8 |
Nylon Nut, 14mm
90350-14000
|
$1.67 $1.26 | ||
| 9 |
Brake Cam Shaft
43141-101-001
|
$11.72 $8.79 | ||
| 10 |
Indicator Plate
43145-104-000
|
$1.42 $1.07 | ||
| 11 |
Hex Flange Bolt, 6*65
96000-06030-10C
|
$1.33 $1.00 | ||
| 12 |
Rear Brake Arm
43410-116-000
|
$9.52 $7.14 | ||
| 13 |
Rear Brake Fix Shaft
45110-116-000
|
$9.52 $7.14 | ||
| 14 |
Oil Ring, 7.5*1.5
91307-101-000
|
$0.84 $0.63 | ||
| 15 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 $0.63 | ||
| 16 |
Plain Washer, 8*15*1.5
94101-0815015C
|
$0.50 $0.38 | ||
| 17 |
Fender, Rear
80115-125-000
|
$15.82 $11.86 | ||
| 18 |
Hex Socket Bolt, 6*15
91000-06015B
|
$1.14 $0.85 | ||
| 19 |
Lock Nut, 6mm
94053-06000G
|
|||
| 20 |
Plain Washer, 6*13*1
94101-0613010B
|
$0.50 $0.38 |
