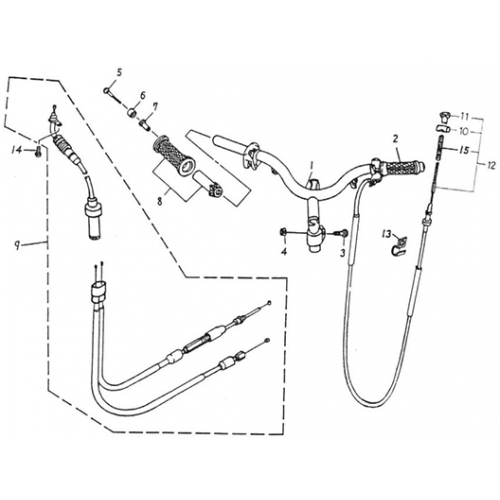

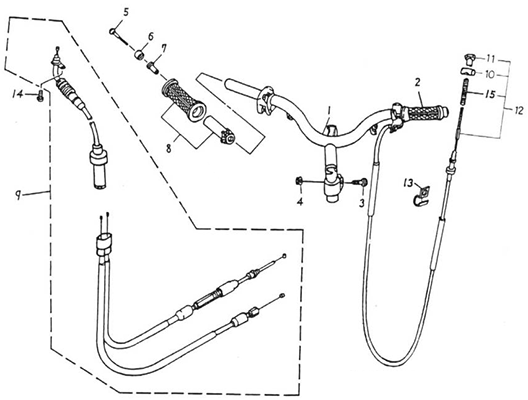

Handle, Pipe, Cable (Thunder Bike 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Handle Bar
53100-125-000
|
$43.66 $32.74 | ||
| 2 |
L.Handle Grip
53166-107-000
|
$8.79 $6.59 | ||
| 3 |
Hex Washer Face Bolt, 10*45
96000-10045-14B
|
$2.68 $2.01 | ||
| 4 |
Hex Flange Nut With Serration, 10mm
94050-10000C
|
$1.26 $0.94 | ||
| 5 |
Flat Head Phillips Bolt, 6*45
93902-06045B
|
$0.54 $0.40 | ||
| 6 |
Grip End
53116-107-000
|
$8.79 $6.59 | ||
| 7 |
Grip End Spacer Tube, 8.5*12/18*23
53111-107-000
|
$3.35 $2.51 | ||
| 8 |
R.Handle Grip Comp
53165-107-000
|
$8.79 $6.59 | ||
| 9 |
Throttle Cable
17910-116-00B
|
$38.40 $28.80 | ||
| 10 |
Rear Brake Fixture, 12*22
95015-31001
|
$2.01 $1.51 | ||
| 11 |
Rear Brake Adjust Nut, 6mm
95015-41000
|
$2.01 $1.51 | ||
| 12 |
Rear Brake Cable Ass'Y
43450-125-000
|
$28.53 $21.40 | ||
| 13 |
Clamp
11351-120-00A
|
$1.59 $1.19 | ||
| 14 |
Pan Phillips Bolt, 5*10
93500-05010C
|
$0.59 $0.44 | ||
| 15 |
Reset Spring, 140mm
43472-110-00A
|
$2.59 $1.95 | ||
| 16 |
Choke Cable
17950-116-001
|
$21.75 $16.31 |
