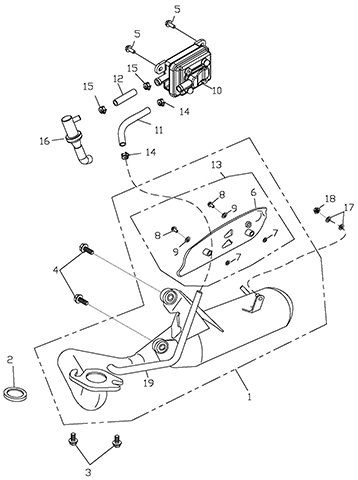

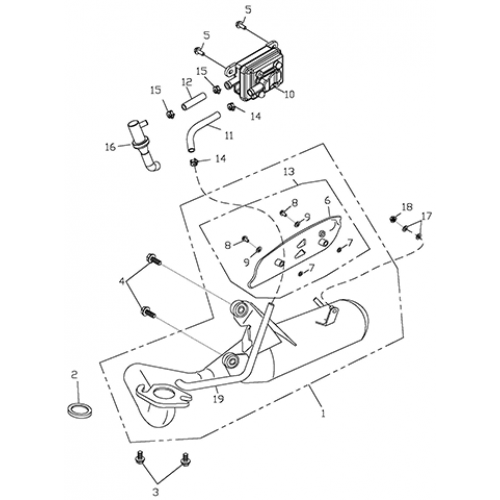

Exhaust (Thunder Bike 50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Exhaust Pipe Ass'Y, CATA
18300-135-001
|
|||
| 2 |
Exhaust Pipe Gasket
18291-116-000
|
|||
| 3 |
Hex Head Phillips Bolt, 6*18
92001-06018-10B
|
$1.51 $1.13 | ||
| 4 |
Hex Washer Face Bolt, 8*40
96000-08040-12K
|
$1.59 $1.19 | ||
| 5 |
Hex Flange Bolt, 6*16
96000-06016-10G
|
$0.67 $0.50 | ||
| 6 |
Muffler Protector
18301-116-00A
|
|||
| 7 |
Paper Plain Washer, 6*17*3
94114-0617030
|
$0.84 $0.63 | ||
| 8 |
Pan Philps Bolt, 6*20
93801-06020Z
|
$3.35 $2.51 | ||
| 9 |
Paper Plain Washer, 8.5*17*2
94114-0817020
|
$0.84 $0.63 | ||
| 10 |
Reed Valve Comp
17410-116-000
|
|||
| 11 |
Reed Valve Comp In. Pipe
17411-116-00A
|
$7.03 $5.27 | ||
| 12 |
Reed Valve Comp Ex. Pipe, 50mm
17412-250-000
|
$3.35 $2.51 | ||
| 13 |
Muffler Protector Comp
18310-116-00ABK
|
|||
| 14 |
Spring Clamp, 18mm
94513-18000
|
$3.35 $2.51 | ||
| 15 |
Spring Clamp, 16mm
94513-16000
|
$2.01 $1.51 | ||
| 16 |
Catch Tank Comp
1736A-175-000
|
$13.18 $9.88 | ||
| 17 |
Heat Resistant Washer, 7*16*2
94114-0716020
|
$0.14 $0.11 | ||
| 18 |
Lock Nut, 6mm
94053-06000G
|
|||
| 19 |
Exhaust Pipe,Front
18313-135-001
|
