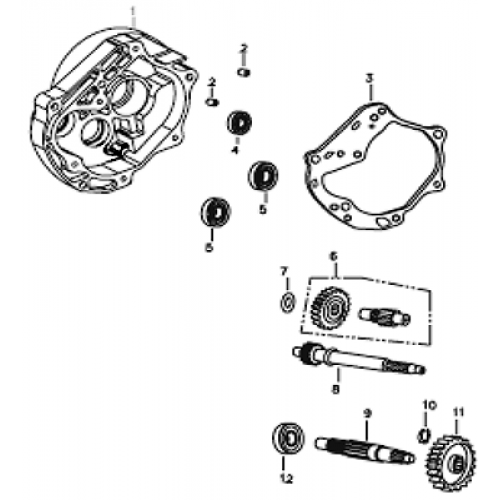

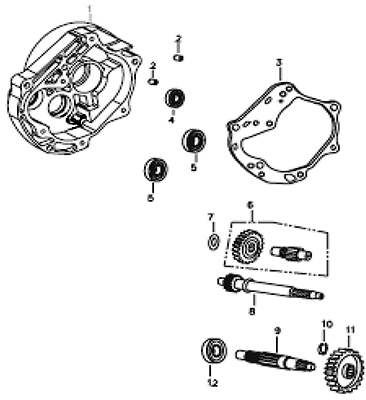

Transmission (Silver Fox (4 Stroke))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mission Cover
21301-133-0A0
|
|||
| 2 |
Dowel Pin, 10*16
94301-10160
|
$1.26 | ||
| 3 |
Mission Cover Gasket
21395-133-0A0
|
$7.32 | ||
| 4 |
Radial Ball Bearing, 6004LLU
96100-6004U
|
$18.45 | ||
| 5 |
Radial Ball Bearing, 6201C3
96100-62010
|
|||
| 6 |
Main Axle Comp, 52T*15T
23420-133-0A0
|
|||
| 7 |
Plain Waher, 12*20*1.3
94102-1220013
|
$5.86 | ||
| 8 |
Drive Shaft, 16T
23411-133-0A0
|
|||
| 9 |
Shaft, Final
23431-133-0A0
|
|||
| 10 |
External Cir Clip, STW-20
94511-2000S
|
$1.67 | ||
| 11 |
Final Dear, 50T
23432-133-0A0
|
|||
| 12 |
Oil Seal, 27*42*7
96500-27427
|
$2.43 |
