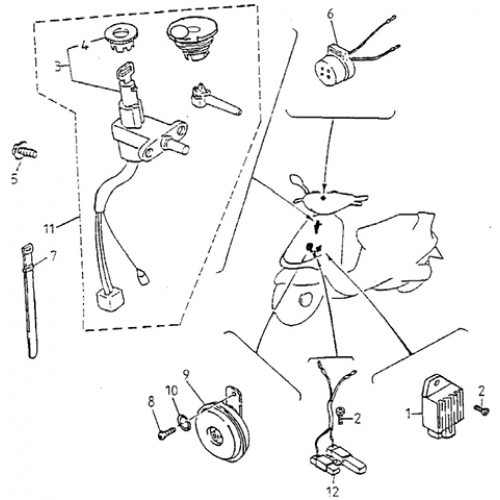

Electric Equipment (I) (Silver Fox (4 Stroke))
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Regulator Rectifier
31600-120-000
|
$44.12 | ||
| 2 |
Pan Phillips Bolt, M5*16
93500-05015B
|
$0.33 | ||
| 3 |
Main Switch Ass'Y
35100-116-000
|
|||
| 4 |
Switch Cap
35111-101-000
|
$2.51 | ||
| 5 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 | ||
| 6 |
Flasher Relay, 12V 40W
38301-107-0AC
|
$16.99 | ||
| 7 |
Cable Tie, 4.8*250m/m
90669-101-00A
|
$0.50 | ||
| 8 |
Pan Phillips Bolt, 6*12
93500-06012C
|
$0.50 | ||
| 9 |
Horn (E-Mark), 12V NO0037
38110-101-001
|
$13.69 | ||
| 10 |
Spring Washer, 6*12*1.5
94111-0612015
|
$0.50 | ||
| 11 |
Adly Scooter Key Set
35010-116-001
|
|||
| 12 |
Resistor Comp
35400-168-000
|
$15.82 |
