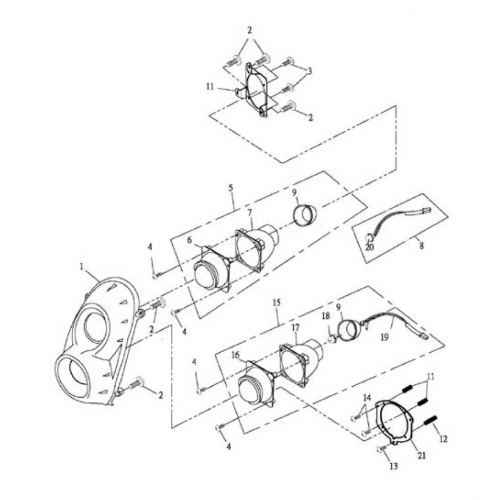

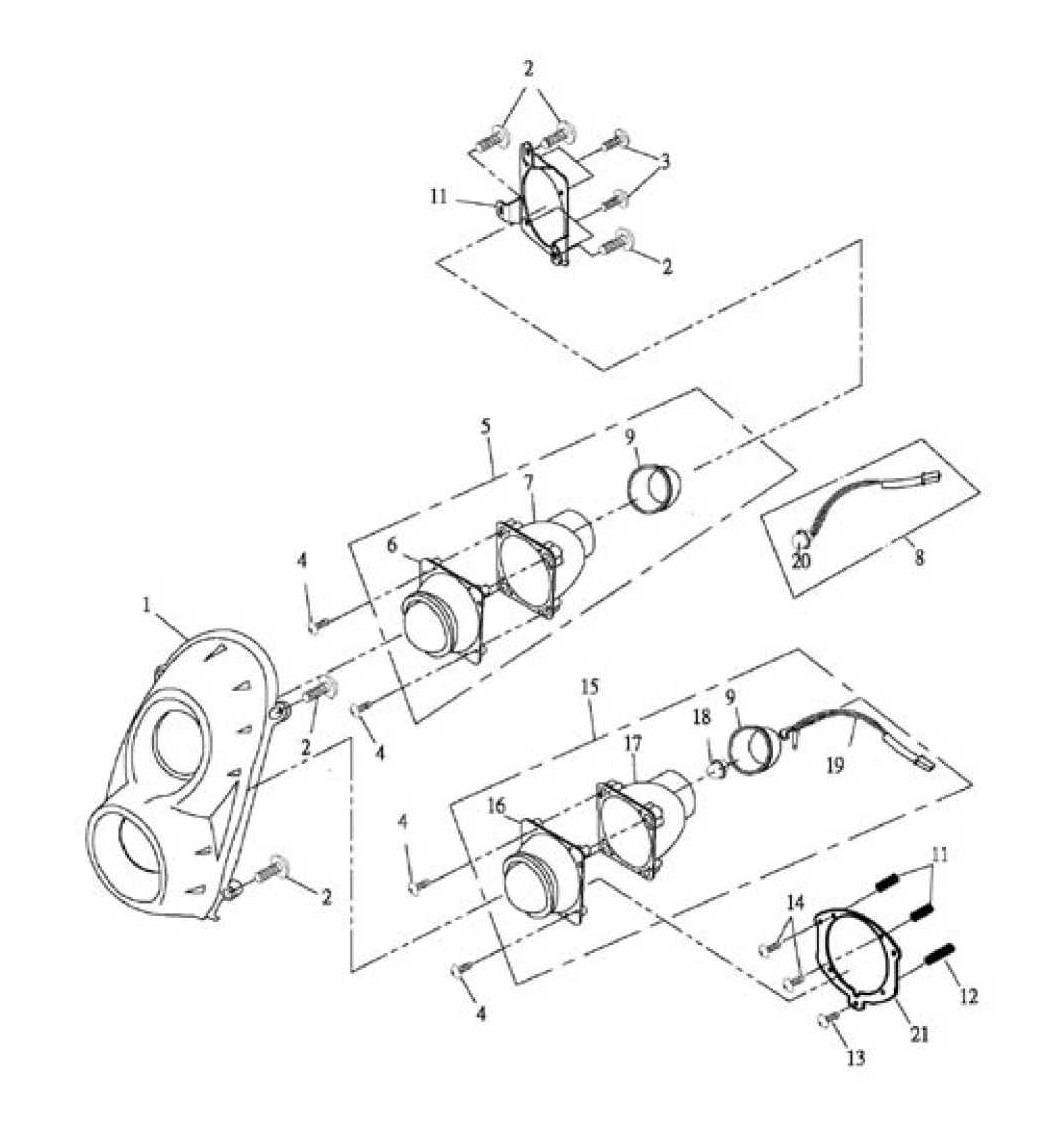

Head Light
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Light Cover
64321-162-000
|
$13.69 | ||
| 2 |
Tapping Screw Truss Head Phillps, 5*16
93903-05016K
|
$0.72 | ||
| 3 |
Plain Washer, 5*14*1
94101-0514010K
|
$0.75 | ||
| 4 |
Tapping Screw Truss Head Phillips, 3.12
93903-03016C
|
$0.25 | ||
| 5 |
Head Light Ass'Y (E-Mark)
33100-159-00A
|
$49.12 | ||
| 6 |
Head Light Cover
33110-159-000
|
|||
| 7 |
Head Light Socket
33111-159-000
|
|||
| 8 |
Position Lamp
34900-159-000
|
|||
| 9 |
Head Light Waterproof Cover
33125-159-000
|
|||
| 10 |
Head Light Bracket
51602-159-000
|
|||
| 11 |
Head Light Spring
33101-162-000
|
|||
| 12 |
Head Light Spring
33101-162-00A
|
|||
| 13 |
Pan Phillips Bolt, 4*65
93500-04065C
|
|||
| 14 |
Hex Phillips Bolt, 4*35
93500-04035C
|
|||
| 15 |
Head Light Ass'Y (Dot), 35W
33100-162-00B
|
$58.70 | ||
| 16 |
Head Light Cover
33110-162-00A
|
|||
| 17 |
Head Light Socket
33111-162-00A
|
|||
| 18 |
Head Light Bulb, H3 12V 35W
34901-162-00B
|
|||
| 19 |
Head Light Wire
34801-162-00A
|
|||
| 20 |
Meter Bulb, 12V/1.7W
34908-125-000
|
$4.18 |
