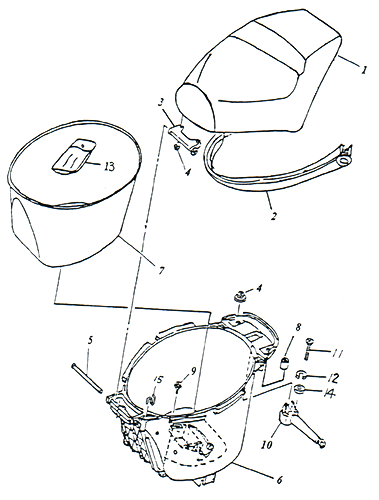

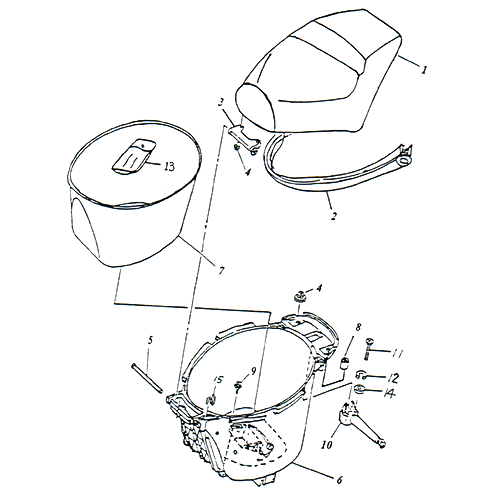

Seat (Adly SuperSonic 50cc II)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat Ass'Y
77200-125-000
|
|||
| 2 |
Seal
77209-116-000
|
$13.64 | ||
| 3 |
Seat Bracket
77201-116-000
|
|||
| 4 |
Hex Flange Nut, 6mm
94050-06000
|
$0.84 | ||
| 5 |
Seat Fix Shaft, 10*115
77203-116-000
|
|||
| 6 |
Helmet Box
77207-116-001
|
|||
| 7 |
Helmet Box Mat
77208-116-000
|
|||
| 8 |
Space Tube, 6.5*12*7
81203-116-000
|
|||
| 9 |
Hex Bolt, 6*18
92000-06018-10
|
|||
| 10 |
Seat Lock Ass'Y
77230-116-000
|
$29.00 | ||
| 11 |
Pan Phillips Bolt, 6*35
93500-06035
|
|||
| 12 |
Spring Washer, 6*12*1.5
94111-0612015
|
$0.50 | ||
| 13 |
Tool Bag
50120-101-000
|
$8.05 | ||
| 14 |
Plain Washer, 6*13*1
94101-0613010
|
$0.50 | ||
| 15 |
Helmet Hook
77106-125-000
|
