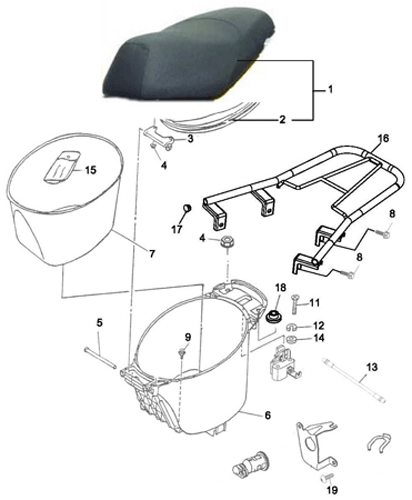

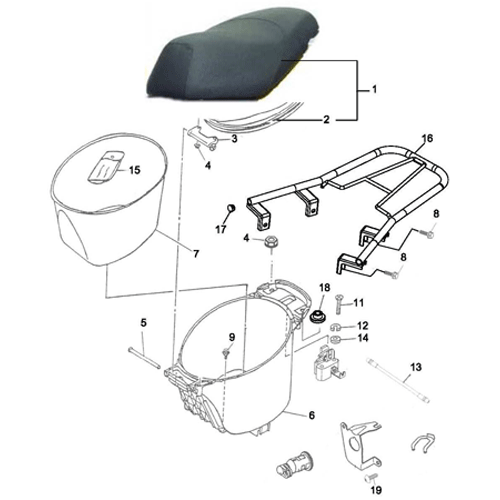

Seat (Adly PANTHER-50 '06)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Seat
77200-159-00A
|
$105.48 | ||
| 2 |
Seal
77209-116-000
|
$13.64 | ||
| 3 |
Seat Bracket
77201-116-000
|
$5.86 | ||
| 4 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 | ||
| 5 |
Seat Fix Shaft, 10*115
77203-116-000
|
$3.35 | ||
| 6 |
Helmet Box
77207-116-001
|
$56.67 | ||
| 7 |
Helmet Box Mat
77208-116-000
|
$37.81 | ||
| 8 |
Hex Flange Bolt, M8*25
96000-08025-12G
|
$2.01 | ||
| 9 |
Ladder Bolt, 6*14*3
90111-06014-18G
|
$1.67 | ||
| 10 |
Plain Washer, 22*31*2.5
94101-2231025A
|
$2.68 | ||
| 11 |
Pan Phillips Bolt, 6*40
93500-06040B
|
$0.67 | ||
| 12 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 | ||
| 13 |
Seat Release Cable
77212-159-000
|
|||
| 14 |
Plain Washer, 6*13*1
94101-0613010B
|
$0.50 | ||
| 15 |
Tool Bag
50120-101-000
|
$8.05 | ||
| 16 |
Carrier Set, Rear
81200-159-000
|
$38.20 | ||
| 17 |
Rubber Hat, CB15
81224-159-000
|
|||
| 18 |
Rear Carrier Space
81304-116-001
|
|||
| 19 |
Tapping Screw Truss Head Phillips, 4*12
93903-04012K
|
$0.25 |
