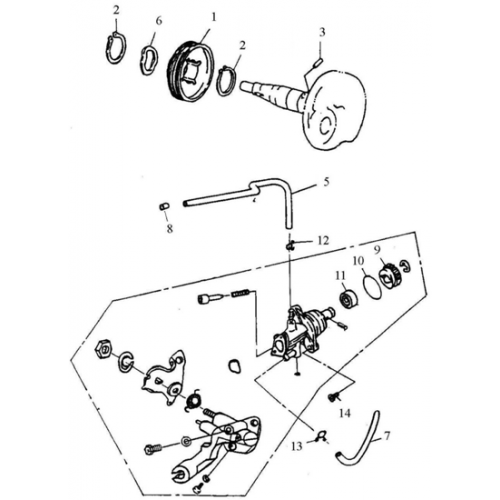

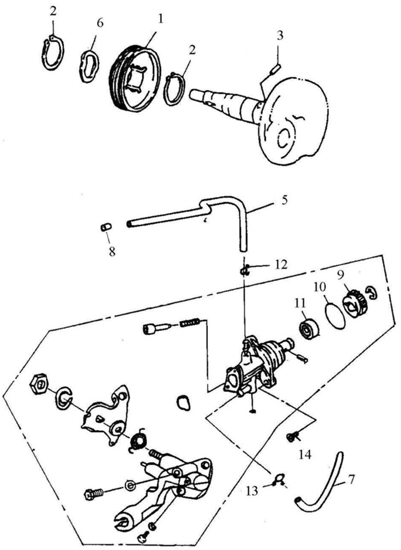

Oil Pump (EPA) (Adly PANTHER-50 '06)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Pump Drive Gear
15150-104-000
|
$5.13 $3.84 | ||
| 2 |
External Cir Clip, STW-19
94511-1900S
|
$0.84 $0.63 | ||
| 3 |
Crank Shaft Pin, 3*11.8
96300-030118
|
$0.67 $0.50 | ||
| 4 |
Oil Pump
15100-116-00C
|
$72.69 $54.52 | ||
| 5 |
Oil Tube, 2*5*250
94400-0205250
|
$4.18 $3.14 | ||
| 6 |
Wave Washer, 19.2*26*0.3
15151-104-000
|
$1.26 $0.94 | ||
| 7 |
Tube, 4.8*8*300
94400-0408300
|
$3.91 $2.93 | ||
| 8 |
Steel Ring, 4 mm
15101-116-000
|
$0.84 $0.63 | ||
| 9 |
Oil Pump Wormwheel, 40T
15136-110-000
|
$11.72 $8.79 | ||
| 10 |
Oil Ring, 19.3*1.6
91319-110-000
|
$6.59 $4.94 | ||
| 11 |
Oil Seal, 9.5*16*4
96500-09164
|
$6.59 $4.94 | ||
| 12 |
Clip, 5*0.6
94510-05000
|
$0.48 $0.36 | ||
| 13 |
Clip, 8*0.8
94510-08000
|
$0.69 $0.52 | ||
| 14 |
Pan Phillips Bolt, M5*16
93500-05016B
|
$0.59 $0.44 |
