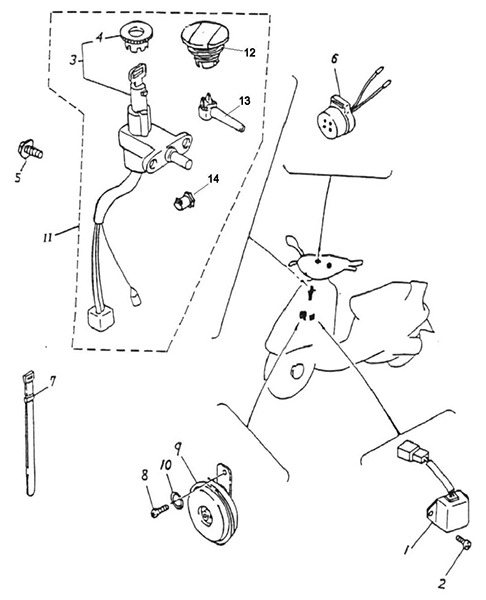

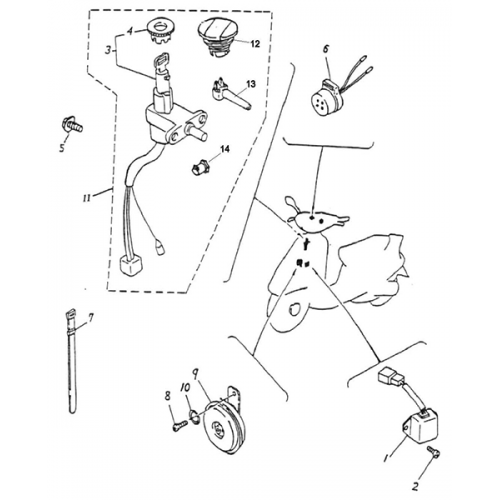

Electrical Equipment (Adly Noble ST-50)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Adly Regulator Rectifier
31600-110-000
|
$44.76 $33.57 | ||
| 2 |
Pan Phillips Bolt, 5*12
93500-05012B
|
$0.84 $0.63 | ||
| 3 |
Main Switch Ass'Y
35100-125-000
|
$59.99 $44.99 | ||
| 4 |
Switch Cap
35111-118-000
|
$4.69 $3.51 | ||
| 5 |
Hex Bolt, 6*18 (18mm)
92000-06018-10K
|
$1.00 $0.75 | ||
| 6 |
Flasher Relay, 62W
38301-190-000
|
|||
| 7 |
Cable Tie, 4.8*250m/m
90669-101-00A
|
$0.50 $0.38 | ||
| 8 |
Pan Phillips Bolt, 6*12
93500-06012B
|
$0.50 $0.38 | ||
| 9 |
Horn (E-Mark), 12V NO0037
38110-101-001
|
$13.69 $10.27 | ||
| 10 |
Spring Washer , 6*12*1.5
94111-0612015B
|
$0.50 $0.38 | ||
| 11 |
Adly Scooter Key Set
35010-125-001
|
|||
| 12 |
Fuel Tank Cap
17620-125-000
|
|||
| 13 |
Seat Lock Ass'Y
77230-116-000
|
$29.00 $21.75 | ||
| 14 |
Inner Box Lock
81142-101-000
|
$13.84 $10.38 |
