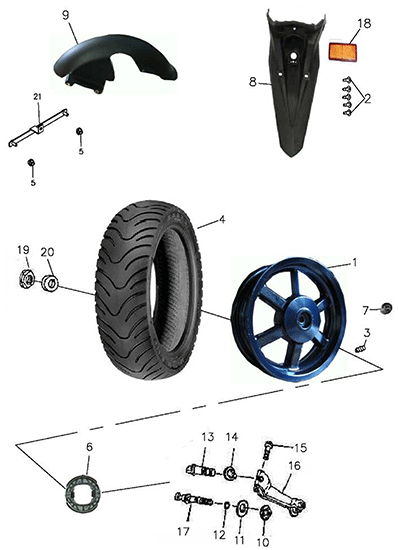

Rear Wheel (Aluminum Rim) (Adly GTA-50 2010)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Al. Rear Rim (Mat Black), 3.5x12
42801-381-00BMK
|
$144.70 | ||
| 2 |
Tapping Screw Truss Head Phillips, 4*16
93903-04016K
|
$0.25 | ||
| 3 |
Air Nozzle
42616-381-000
|
|||
| 4 |
Front/Rear Tire K413 130/70-12
42711-381-000
|
|||
| 5 |
Hex Flange Nut With Serration, M6
94050-06000G
|
$0.84 | ||
| 6 |
Rear Brake Shoe Ass'Y
43120-110-001
|
$34.64 | ||
| 7 |
Air Nozzle Cap
42618-381-000
|
|||
| 8 |
Rear Fender
80118-381-000
|
|||
| 9 |
Rear Fender
80115-154-001
|
|||
| 10 |
Hex Flange Nut With Serration, 8mm
94050-08000C
|
$0.84 | ||
| 11 |
Plain Washer, 8*15*1.5
94101-0815015C
|
$0.50 | ||
| 13 |
Brake Cam Shaft
43141-101-001
|
$11.72 | ||
| 14 |
Indicator Plate
43145-104-000
|
$1.42 | ||
| 15 |
Hex Flange Bolt, 6*65
96000-06030-10C
|
$1.33 | ||
| 16 |
Rear Brake Arm
43410-116-000
|
$9.52 | ||
| 17 |
Rear Brake Fix Shaft
45110-116-000
|
$9.52 | ||
| 18 |
Reflector (Red), E9-02. 1269
33741-381-000RD
|
|||
| 19 |
Nylon Nut (Black Zinc), 14mm
90350-14000K
|
|||
| 20 |
Plain Washer (Black Zinc), 15*29*3
94105-1529030K
|
|||
| 21 |
Rear Fender Bracket (L)
50309-381-000
|
