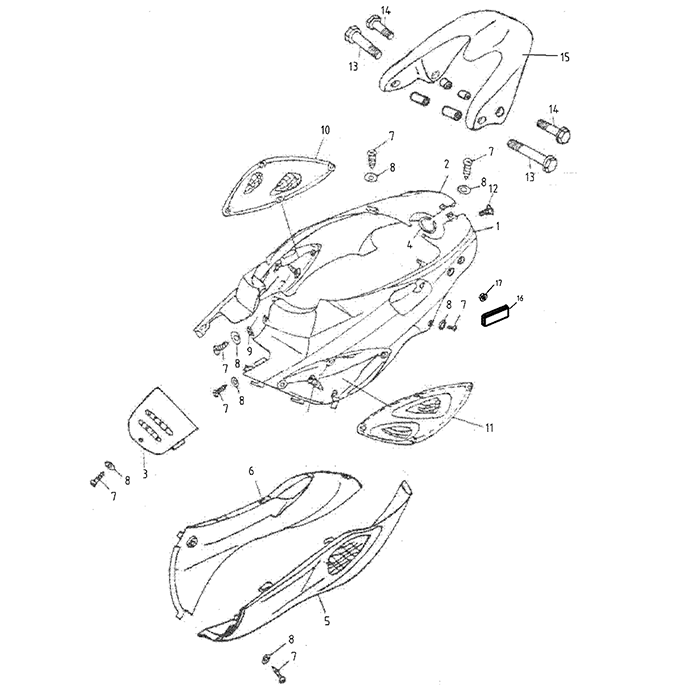

Body Cover
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Left Body Cover
83600-125-00B
|
$64.00 | ||
| 2 |
Right Body Cover
83500-125-00B
|
$64.00 | ||
| 3 |
Body Cover, Center
31506-125-000
|
$10.14 | ||
| 4 |
Fuel Tank Seal, 280mm
17632-125-000
|
$2.90 | ||
| 5 |
Side Cover, Left
83603-125-000
|
$28.53 | ||
| 6 |
Side Cover, Right
83503-125-000
|
$28.53 | ||
| 7 |
Tapping Screw Truss Head Phillps, 5*16
93903-05016K
|
$0.72 | ||
| 8 |
Plain Washer, 5*14*1
94101-0514010K
|
$0.75 | ||
| 9 |
U Plate Nut, 4mm
90344-04000K
|
$0.84 | ||
| 10 |
R.Body Cover Trim
83504-125-000
|
$15.98 | ||
| 11 |
L.Body Cover Trim (carbon)
83604-125-000
|
$15.98 | ||
| 12 |
Rear Spoiler Ass'Y
81300-125-000
|
$64.00 | ||
| 13 |
Pan Head Phillips Bolt M6 X 20
93800-06020S
|
$1.67 | ||
| 14 |
Hex Washer Face Bolt, 8*76
96000-0807612CM
|
$1.30 | ||
| 15 |
Hex Washer Face Bolt, 8*56
96000-0805612CM
|
$2.85 | ||
| 16 |
Reflector (E-Mark, SAE)
33741-133-000
|
$7.32 | ||
| 17 |
Hex Flange Nut, 6mm
94050-06000C
|
$0.84 |
