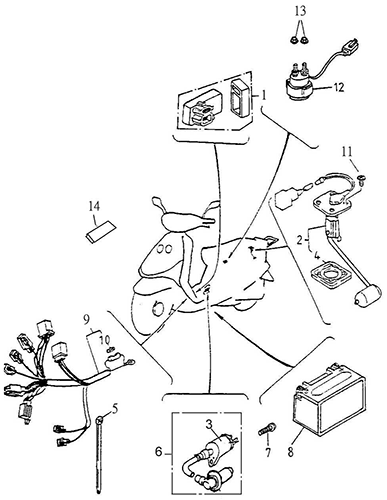

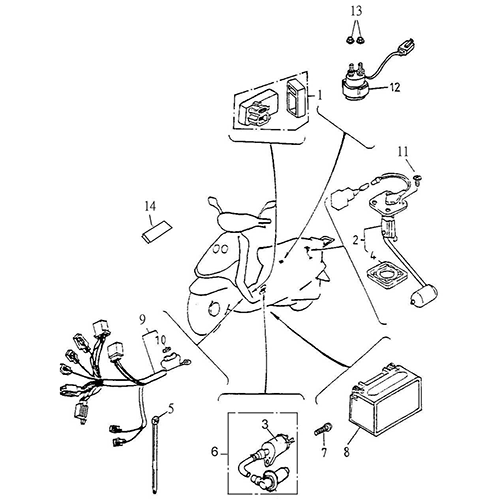

Electrical Equipment, CDI (Thunder Bike 150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
C.D.I Unit (30410)
30410-120-000
|
$56.60 | ||
| 2 |
Petrol Gauge Ass'Y
37800-125-000
|
$32.95 | ||
| 3 |
High Tension Coil
30510-120-000
|
$44.12 | ||
| 4 |
Fuel Lever Gauge Gasket
37801-101-000
|
$3.77 | ||
| 5 |
Cable Tie, 4.8*200m/m
90669-101-000
|
$0.67 | ||
| 6 |
Spark Plug Cap
30700-120-000
|
$10.98 | ||
| 7 |
Pan Phillips Bolt, 5*25
93500-05025B
|
$0.42 | ||
| 8 |
Battery, YTX7A-BS
31500-120-000
|
$49.12 | ||
| 9 |
Main Wire Harness
32100-127-00B
|
$93.63 | ||
| 10 |
Fuse, 7A
98200-106-000
|
$3.35 | ||
| 11 |
Round Phillips Bolt, 5*12
93000-05012C
|
$0.33 | ||
| 12 |
Starting Relay
38501-120-000
|
$40.34 | ||
| 13 |
Hex Flange Nut, 6mm
94050-06000
|
$0.84 | ||
| 14 |
Tool Bag
50120-120-000
|
$14.76 |
