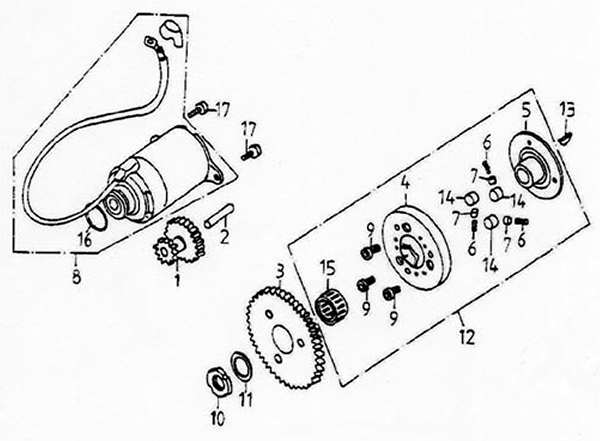

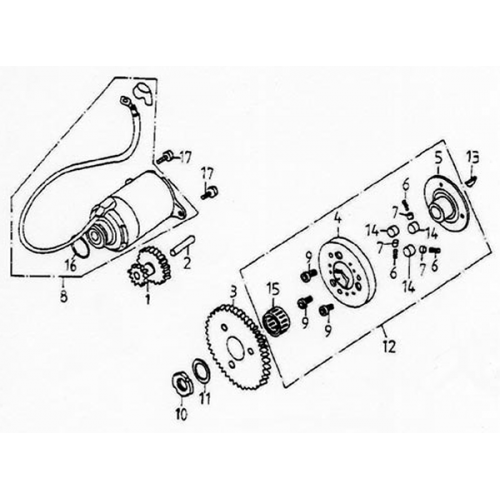

Starting Motor (Lambretta UNO150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Starter Reduction Gear
28422-120-0A0
|
$36.56 | ||
| 2 |
Shaft,Starter Reduction Gear
96300-100460
|
$4.69 | ||
| 3 |
Starting Clutch Gear
28220-120-000
|
$36.56 | ||
| 4 |
Clutch Cover Comp
28120-120-000
|
$32.95 | ||
| 5 |
Starting Clutch Flange
28125-120-000
|
$36.56 | ||
| 6 |
Clutch Spring
28413-120-000
|
$0.59 | ||
| 7 |
Clutch Guider
28412-120-000
|
$3.35 | ||
| 8 |
Starting Motor Ass'Y
31200-120-000
|
$132.37 | ||
| 9 |
Hex Socket Bolt, 6*12
91000-06012B
|
$2.01 | ||
| 10 |
Nut Lock, 22mm
94071-22000A
|
$8.79 | ||
| 11 |
Plain Washer, 22*31*2.5
94101-2231025A
|
$2.68 | ||
| 12 |
Starter Clutch Ass'Y
28410-120-000
|
$56.73 | ||
| 13 |
Semicycle Key, 25*4*14
90471-101-000
|
$2.09 | ||
| 14 |
Starter Clutch Roller, 10*10
28411-120-000
|
$3.01 | ||
| 15 |
Needle Bearing, 28*32*17
96200-283217
|
$25.37 | ||
| 16 |
Oil Ring, 24.4*3.1
91324-120-000
|
$3.35 | ||
| 17 |
Hex Flange Bolt
96000-06016-08C
|
$0.67 |
