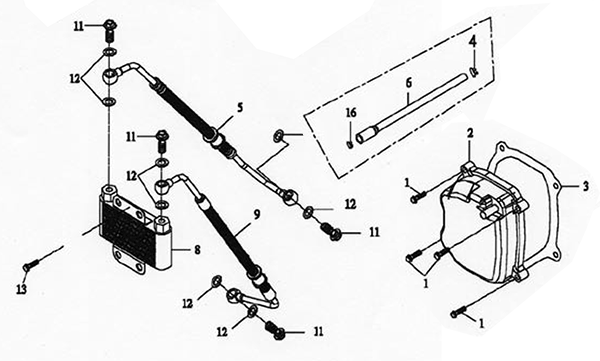

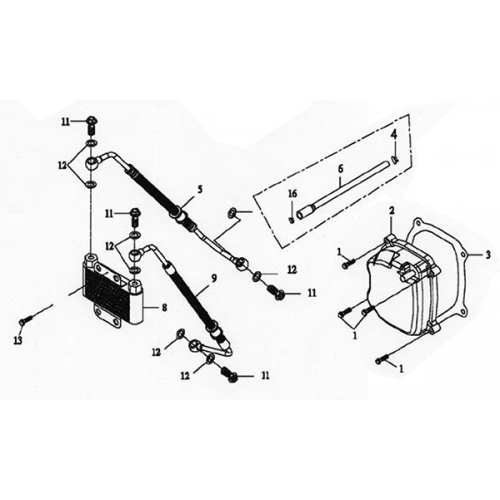

Cylinder Head Cover (Lambretta UNO150)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Hex Flange Bolt, 6*25
96000-06025-08C
|
$1.17 $0.88 | ||
| 2 |
Cylinder Head Cover Assy
12310-197-000
|
$36.56 $27.42 | ||
| 3 |
Head Cover Gasket
12391-197-000
|
$11.72 $8.79 | ||
| 4 |
Clip, 9*1
94510-09000
|
$0.33 $0.25 | ||
| 5 |
Oil Cooler Collar
17601-197-000
|
$4.02 $3.01 | ||
| 6 |
Breather Tube, 6*8.5
11211-197-000
|
|||
| 7 |
Clip, 12mm
94510-12000
|
$0.35 $0.26 | ||
| 8 |
Oil Cooler
17600-197-000
|
$101.33 $76.00 | ||
| 9 |
Oil Pipe L
17602-250-000
|
$80.00 $60.00 | ||
| 10 |
Oil Pipe R
17603-250-000
|
|||
| 11 |
Hex Bolt, 12*28
45456-197-000
|
$4.69 $3.51 | ||
| 12 |
Al Plain Washer, 12.5*20*2
94104-1220020
|
$1.51 $1.13 | ||
| 13 |
Hex Flange Bolt
96000-06016-08C
|
$0.67 $0.50 |
