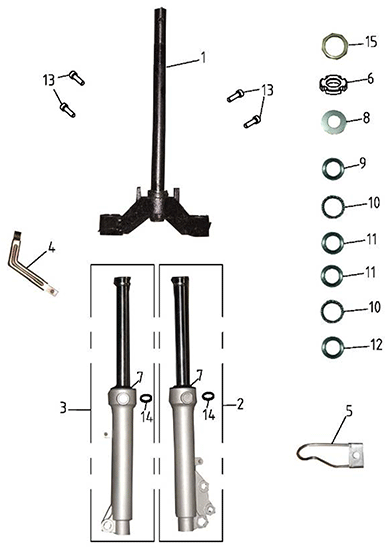

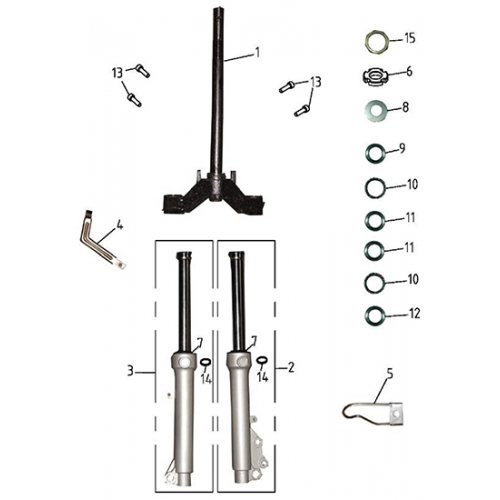

Front Fork (Adly GTA-50 2010)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Stem Comp
51109-381-000
|
|||
| 2 |
Left Tube Ass, Y
53130-381-000
|
$96.10 | ||
| 3 |
Right Tube Ass, Y
53030-381-000
|
|||
| 4 |
Brake Hose Bracket
45451-381-000
|
|||
| 5 |
Speedometer Cable Bracket
44831-381-000
|
|||
| 6 |
Spaner Nut, 25mm
94071-25000B
|
$4.83 | ||
| 7 |
Front Cushion Dust Seal
51425-381-000
|
|||
| 8 |
Steer Ing Stem Dust Cover
50301-381-000
|
|||
| 9 |
Late Cone Strg Top #2
53212-381-000
|
|||
| 10 |
Steel Ball
96211-381-000
|
|||
| 11 |
Lathe Strg Inner #3
53213-381-000
|
|||
| 12 |
Race, Ball #5
53215-381-000
|
|||
| 13 |
Hex Bolt (Green Zinc), 8*45
92000-08045-12G
|
|||
| 14 |
Oil Seal, 31*43*10. 3
96500-3143103
|
|||
| 15 |
Nut Lock (Yellow Zinc), 25mm
94072-25000C
|
