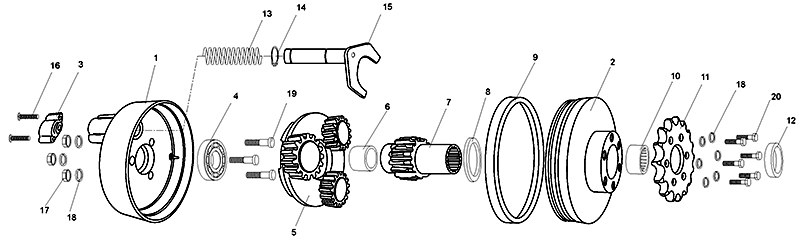

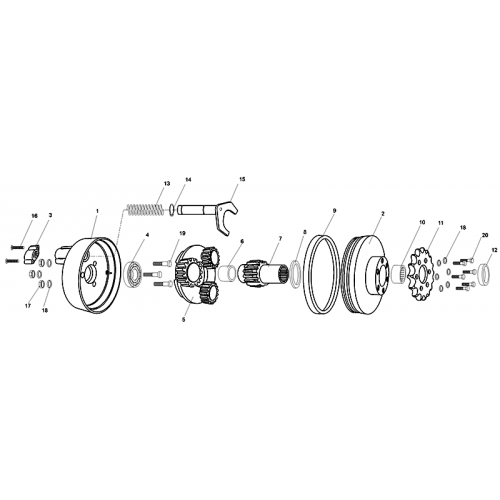

Reverse Assembly (Kasea LM150IIR 2003)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Gear Case, R
94100-22020-OB
|
|||
| 2 |
Gear Case, L
22100-22002-OB
|
|||
| 3 |
Cover, Gear Shiting Yoke
22100-22102-OB
|
|||
| 4 |
Bearing 6003 Ddu
91004-06003-OB
|
|||
| 5 |
Counter Gear Shaft Comp.
23400-22002-OB
|
$137.81 | ||
| 7 |
Drive Gear
56000-20222-OB
|
|||
| 8 |
Collar, Drive Gear
94100-22002-OB
|
|||
| 9 |
Rubber Oil Seal
93000-22002-OB
|
|||
| 10 |
Needle Bearing 28X35X20
97000-83520-OB
|
|||
| 11 |
Drive Sprocket
56000-22002-OB
|
|||
| 12 |
Internal Collar
94100-20222-OB
|
|||
| 13 |
Spring, Gear Shifting Yoke
63200-22002-OB
|
|||
| 14 |
Circlip 12
94520-20012-OB
|
|||
| 15 |
Gear Shifting Yoke
42100-22002-OB
|
|||
| 16 |
Screw. Pan. M6X20
9.600.620
|
|||
| 17 |
Nut Hex 8Mm
95100-08013-OB
|
|||
| 18 |
Washer Lock D5
9.400.005
|
|||
| 19 |
Bolt, M8X40
91100-08040-OB
|
|||
| 20 |
Bolt, M8X25
9.100.825
|
