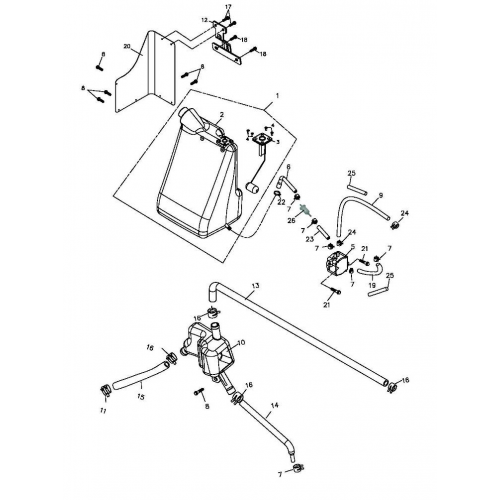

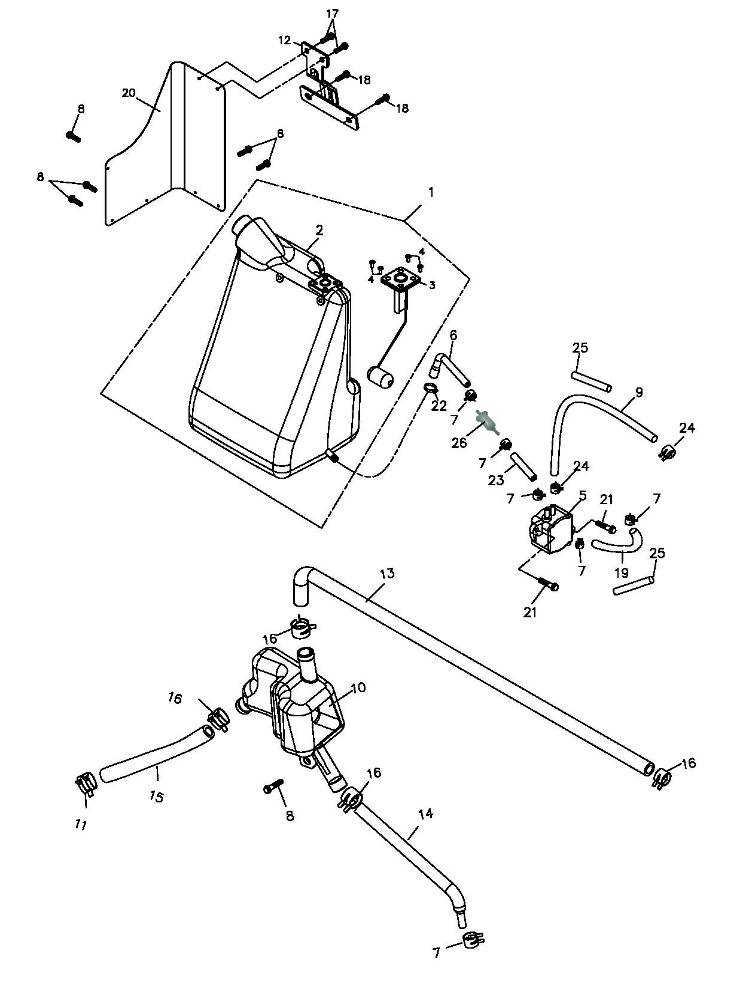

Fuel Tank (Adly Mini Car 320)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fuel Tank Ass'Y
17511-912-000
|
$141.23 | ||
| 2 |
Fuel Tank Comp
17500-912-000
|
$96.00 | ||
| 3 |
Petrol Gauge Ass'Y
37800-912-000
|
|||
| 4 |
Round Phillips Bolt, 5*12
93000-05012C
|
$0.33 | ||
| 5 |
Pump, Gasoline
16954-158-000
|
$37.11 | ||
| 6 |
Fuel Pump Outlet Tube
16957-912-001
|
$5.07 | ||
| 7 |
Spring Clamp
94513-09000
|
$1.26 | ||
| 8 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 9 |
Fuel Pump Vaccum Hose
16955-912-000
|
$4.17 | ||
| 10 |
Secondary Oil Tank
55110-169-000
|
$11.60 | ||
| 11 |
Spring Clamp
94513-10000
|
|||
| 12 |
Fuel Tank Bracket
17521-912-000
|
$13.69 | ||
| 13 |
Breather Hose
55113-912-000
|
$14.33 | ||
| 14 |
Oil Suction Hose
55112-912-000
|
$14.33 | ||
| 15 |
Oil Tube, L=420
55113-272-000
|
|||
| 16 |
Spring Clamp, 16mm
94513-16000
|
$2.01 | ||
| 17 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 18 |
Hex Washer Face Bolt, 8*12
96000-08012-10G
|
$1.16 | ||
| 19 |
Fuel Pump Inlet Tube
16956-912-000
|
$3.86 | ||
| 20 |
Fuel Tank Net
17520-912-001
|
$59.73 |
