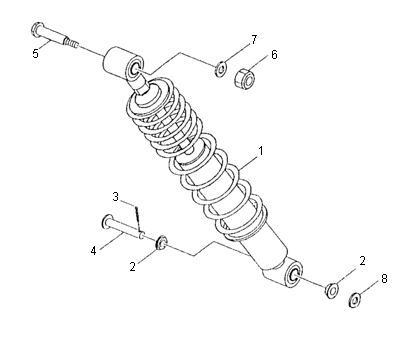

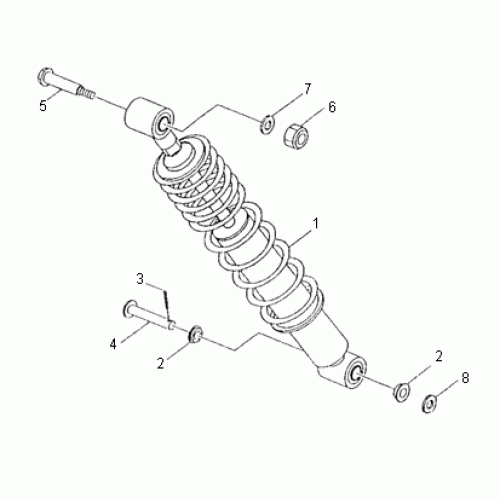

Rear Suspension (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
SHOCK ABSORBER ASS'Y,REAR
32210-CBT-02
|
$164.27 $123.20 | ||
| 2 |
COVER, THRUST
32231-RAM-00
|
$2.78 $2.08 | ||
| 3 |
PIN, COTTER 2.9*25
90240-29025-B
|
$0.35 $0.26 | ||
| 4 |
PIN, CLEVIS
94610-12070-B
|
$0.70 $0.52 | ||
| 5 |
BOLT
94710-10066-B
|
$1.39 $1.05 | ||
| 6 |
NUT, NYLON
95311-101710-B
|
$1.26 $0.94 | ||
| 7 |
WASHER, PLATE 10.5*22*2
97201-102220-B
|
$0.82 $0.62 | ||
| 8 |
WASHER, PLATE 12.5*22*2.3
97201-122223-B
|
$1.05 $0.78 |
