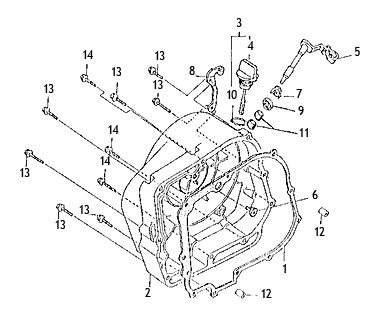

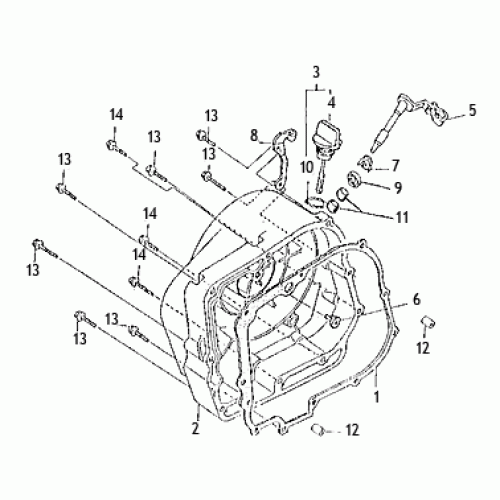

Crankcase Cover RT (Kasea Skyhawk 250 Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
GASKET, R CRANKCASE COVER
15221-CBT-00
|
$11.14 $8.36 | ||
| 2 |
COVER, R CRANKCASE COMP
15511-CBT-00
|
$81.27 $60.95 | ||
| 3 |
GAUGE ASS'Y, OIL LEVEL
15561-CBT-00
|
$8.37 $6.28 | ||
| 4 |
GAUGE, OIL LEVEL
15563-CBT-00
|
$6.96 $5.22 | ||
| 5 |
LEVER, CLUTCH
25723-CBT-00
|
$13.95 $10.46 | ||
| 6 |
PUSHING PLATE
25732-CBT-00
|
$12.55 $9.41 | ||
| 7 |
SPRING CLUTCH LEVER
25753-CBT-00
|
$2.79 $2.09 | ||
| 8 |
HOLDER, CLUTCH WIRE
25793-CBT-00
|
$6.97 $5.23 | ||
| 9 |
OIL SEAL KC 12*18*5
93110-12185
|
$6.97 $5.23 | ||
| 10 |
O-RING 3.5*17.8
93210-35178
|
$1.39 $1.05 | ||
| 11 |
BEARING, NEEDLE (HK-121610)
93310-1216100
|
$11.16 $8.37 | ||
| 12 |
PIN, DOWEL 8*14
94410-08014
|
$1.39 $1.05 | ||
| 13 |
BOLT, FLANGE
96411-06040-B
|
$1.39 $1.05 | ||
| 14 |
BOLT, FLANGE
96411-06050-B
|
$1.26 $0.94 |
