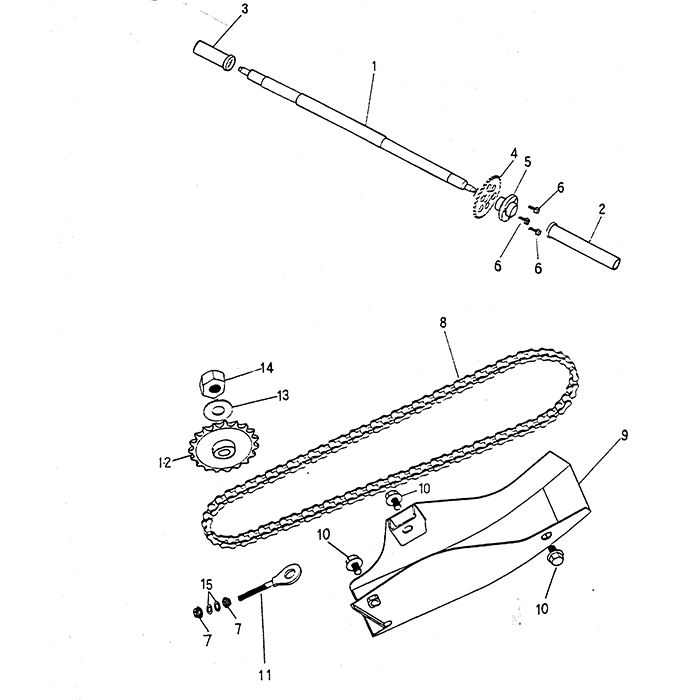

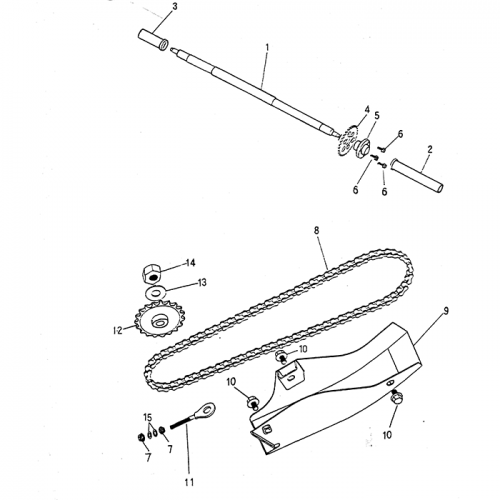

Rear Wheel Axle | Chain
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Wheel Axle, 711mm
42301-145-000
|
$159.11 $119.33 | ||
| 2 |
Right Spacer Collar
42620-145-000
|
$15.82 $11.86 | ||
| 3 |
Left Spacer Collar
42622-145-000
|
$13.18 $9.88 | ||
| 4 |
Rear Sprocket, 40T
41201-146-000
|
$40.45 $30.34 | ||
| 5 |
Final Drive Flange(Rev.1
42610-145-000
|
$25.04 $18.78 | ||
| 6 |
Hex Washer Face Bolt, 8*20
96000-08020-12
|
$1.67 $1.26 | ||
| 7 |
Hex Flange Nut, 6mm
94050-06000
|
$0.84 $0.63 | ||
| 8 |
Drive Chain, 428*82
40530-146-000
|
$38.84 $29.13 | ||
| 9 |
Chain Protect Cover
40510-145-001
|
$36.56 $27.42 | ||
| 10 |
Hex Washer Face Bolt, 8*12
96000-08012-12
|
$2.09 $1.57 | ||
| 11 |
Drive Chain Adjuster, 8MM
40543-146-000
|
$6.64 $4.98 | ||
| 13 |
Plain Washer, 15*29*3
94101-1529030
|
$1.15 $0.87 | ||
| 14 |
Nylon Nut, 14mm
90350-14000
|
$1.67 $1.26 | ||
| 15 |
Drive Sprocket, 19T
23802-145-000
|
$36.23 $27.17 | ||
| 16 |
Plain Washer, 6*14*2
94101-0614020
|
$0.59 $0.44 |
