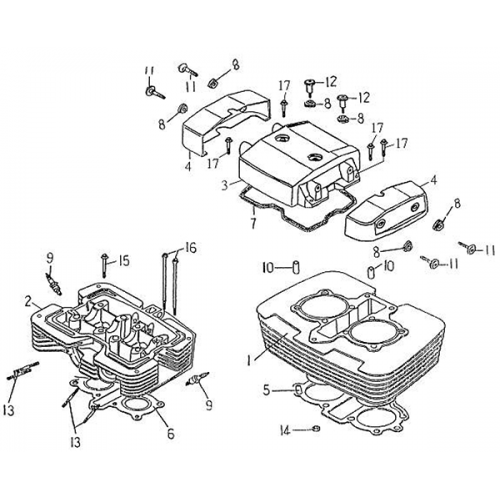

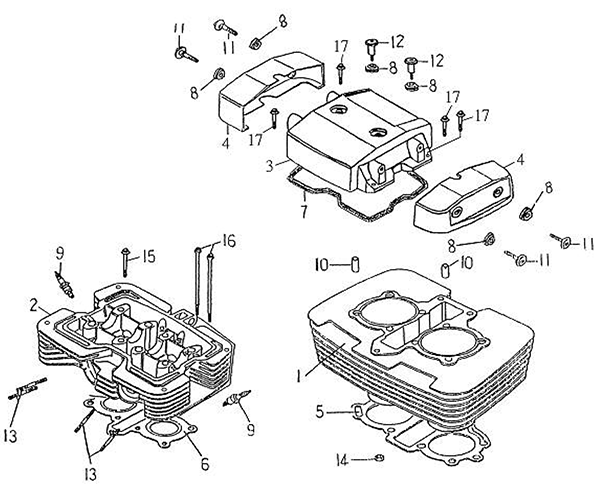

Cylinder Head (Barossa Silverhawk 250)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CYLINDER COMP
11111-CBT-00
|
$175.00 | ||
| 2 |
HEAD COMP, CYLINDER
11121-CBT-00
|
$175.00 | ||
| 3 |
COVER, CYLINDER HEAD
11141-CBT-00
|
$63.88 | ||
| 4 |
Air Seal Head Side Cover Chrome
11144-CBT-00
|
$48.02 | ||
| 5 |
GASKET, CYLINDER
11151-CBT-00
|
|||
| 6 |
GASKET, CYLINDER HEAD
11181-CBT-00
|
|||
| 7 |
GASKET, HEAD COVER
11191-CBT-00
|
|||
| 8 |
RING SEAD HEAD COVER
11196-CBT-00
|
$15.34 | ||
| 9 |
PLUG, SPARK (CR7HS NGK)
62210-GAT-00
|
$4.17 | ||
| 10 |
PIN, DOWEL 10*16
94410-10016
|
$1.39 | ||
| 11 |
LINKED SCREW, AIR SEAL HEAD COVER
94706-06032-R
|
$2.79 | ||
| 12 |
AIR SEAL HEAD COVER
94706-06040-R
|
$2.79 | ||
| 13 |
BOLT, STUD 8*42
94717-08042-C
|
$5.93 | ||
| 14 |
NUT, HEXAGON
95201-061005-B
|
$0.68 | ||
| 15 |
BOLT, FLANGE 6*65
96414-06065-R
|
$1.79 | ||
| 16 |
BOLT, FLANGE 6*145
96414-06145-B
|
$1.79 | ||
| 17 |
BOLT, FLANGE 6*28
96411-06028-B
|
$1.05 |
