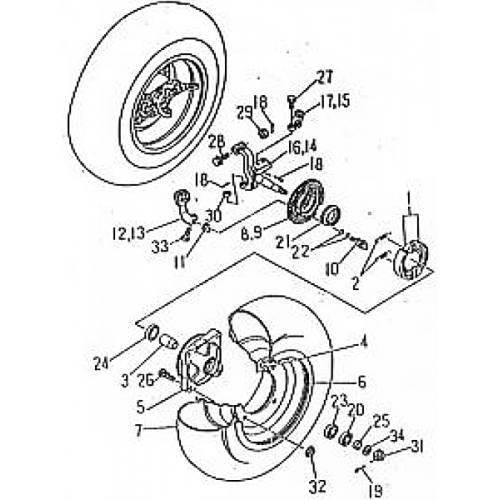

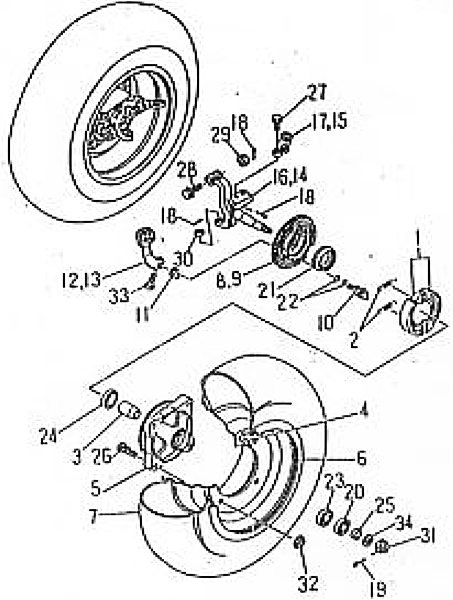

Front Wheel (Barossa ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
BRAKE SHOE SET (includes tension springs)
32345-NAF-00
|
$32.64 | ||
| 2 |
SPRING, TENSION
32346-NAF-00
|
$2.66 | ||
| 3 |
SPACER, BEARING
42515-RAM-00
|
$5.60 | ||
| 4 |
VALVE, RIM
42570-RAM-00
|
$3.49 | ||
| 5 |
HUB, FRONT
42581-RAM-00
|
$101.58 | ||
| 6 |
WHEEL, FRONT 10*5.5AT
42582-RAM-00
|
$57.49 | ||
| 7 |
Front Tire AT 21x7-10
42590-RAM-02
|
$66.60 | ||
| 8 |
PLATE,BRAKE SHOE L
45811-RAM-01
|
$42.02 | ||
| 9 |
PLATE,BRAKE SHOE R
45821-RAM-01
|
$42.02 | ||
| 10 |
CAMSHAFT
45851-RAM-00
|
$5.86 | ||
| 11 |
PLATE, INDICATOR
45853-RAM-00
|
$1.38 | ||
| 12 |
LEVER,CAMSHAFT L
45855-RAM-01
|
$4.17 | ||
| 13 |
LEVER,CAMSHAFT R
45856-RAM-01
|
$4.17 | ||
| 14 |
KNUCKLE, STEERING L
45861-RAM-00
|
$80.96 | ||
| 15 |
JOINT, ROD L
45862-RAM-00
|
$12.54 | ||
| 16 |
KNUCKLE, STEERING R
45866-RAM-00
|
$80.96 | ||
| 17 |
JOINT, ROD R
45867-RAM-00
|
$10.46 | ||
| 18 |
PIN, COTTER 2.3*20
90240-23020-B
|
$0.21 | ||
| 19 |
PIN, COTTER 2.9*25
90240-29025-B
|
$0.35 | ||
| 20 |
OIL SEAL SD22*35*7
93110-22357
|
