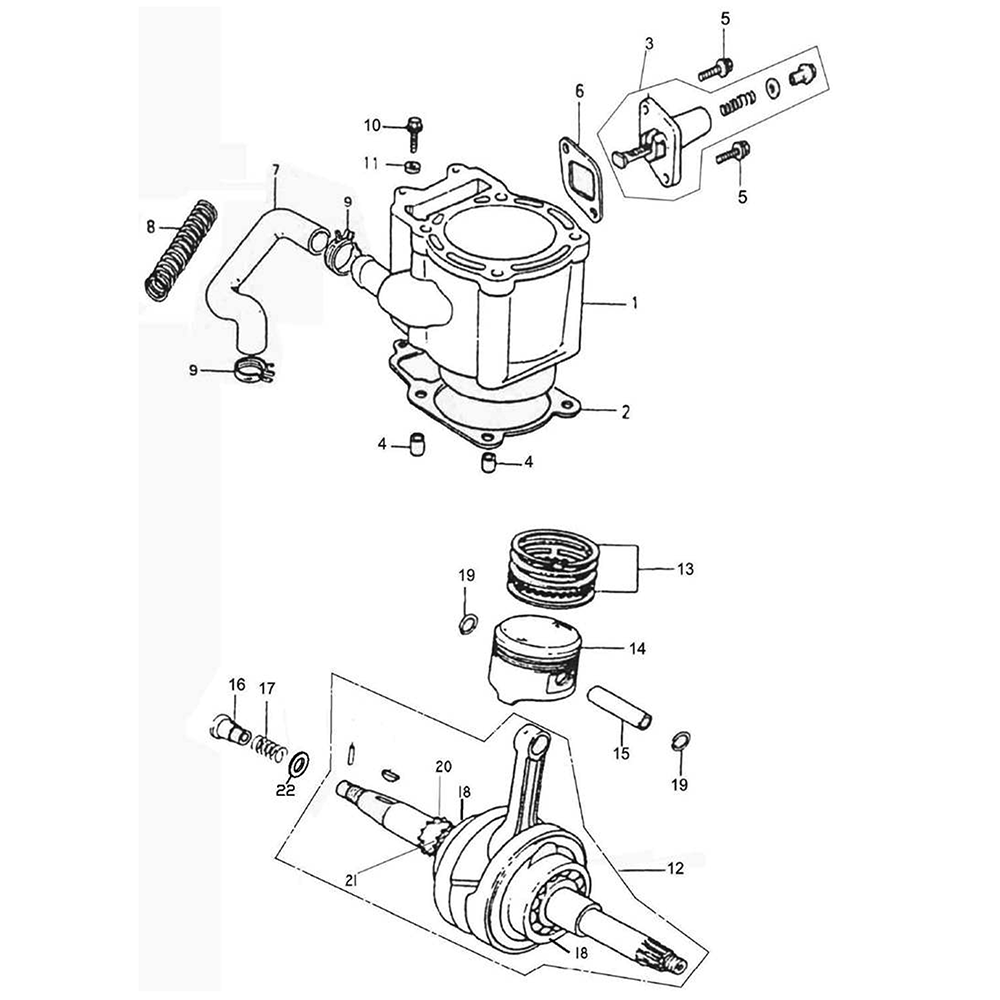

Cylinder | Piston | Crankshaft
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Ass'Y
12100-272-000
|
|||
| 2 |
Cylinder Gasket
12191-272-000
|
$10.62 $7.96 | ||
| 3 |
Tensioner Lifter Ass'Y
14520-133-000
|
$23.99 $17.99 | ||
| 4 |
Dowel Pin, 8*10*14
94301-10140
|
$1.26 $0.94 | ||
| 5 |
Hex Flange Bolt, 6*16
96000-06016-10B
|
$0.67 $0.50 | ||
| 6 |
Tensioner Lifter Gasket
14523-133-000
|
$3.35 $2.51 | ||
| 7 |
Water Pump Outlet Hose
15822-225-000
|
|||
| 8 |
Spring
15821-225-000
|
|||
| 9 |
Clamp
94516-27000
|
|||
| 10 |
Hex Flange Bolt, 6*25
96000-06025-08B
|
$2.51 $1.88 | ||
| 11 |
Plain Washer, 6*13*2
94103-0613020
|
$1.67 $1.26 | ||
| 12 |
Crank Shaft Ass'Y
13000-225-000
|
|||
| 13 |
Piston Ring Set
13011-272-000
|
$37.82 $28.36 | ||
| 14 |
Piston
13100-272-000
|
|||
| 15 |
Piston Pin
13111-272-000
|
$10.98 $8.24 | ||
| 16 |
Valve
15441-225-000
|
$6.22 $4.67 | ||
| 17 |
Spring
15447-225-000
|
$2.01 $1.51 | ||
| 18 |
Radial Ball Bearing
96100-6328V4
|
|||
| 19 |
Piston Pin Clip
13115-169-000
|
$0.42 $0.31 | ||
| 20 |
Timing Sprocket
14311-225-000
|
$32.95 $24.71 |
