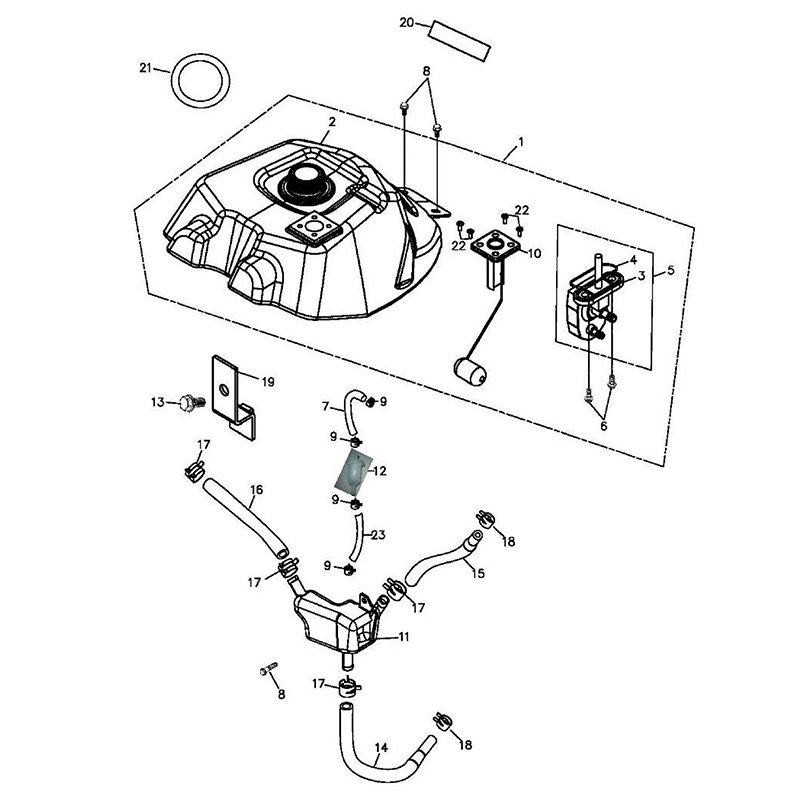

Fuel Tank
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fuel Tank Ass'Y
17511-225-001
|
$159.11 | ||
| 2 |
FUEL TANK COMP
17500-225-001
|
|||
| 3 |
Fuel Cap Body
16953-225-000
|
|||
| 4 |
Fuel Cup Ring
16951-169-000
|
$3.35 | ||
| 5 |
Fuel Valve
16950-225-000
|
$32.95 | ||
| 6 |
Hex Flange Bolt, 6*12
96000-06012-08B
|
$0.67 | ||
| 7 |
Hose, 5*10*60
94400-0510060
|
|||
| 8 |
Hex Washer Face Bolt, 6*14
92006-06014-10G
|
$2.09 | ||
| 9 |
Spring Clamp
94513-09000
|
|||
| 10 |
Petrol Gauge Ass'Y
37800-225-000
|
$32.95 | ||
| 11 |
Secondary Oil Tank
55110-169-000
|
$11.60 | ||
| 12 |
Petrol Filter
16952-145-000
|
|||
| 13 |
Hex Washer Face Bolt, 6*12
96000-06012-10G
|
$1.34 | ||
| 14 |
Oil Tube, L=420
55113-272-000
|
|||
| 15 |
Oil Tube
55112-225-000
|
|||
| 16 |
Oil Tube, L=500
55111-272-001
|
|||
| 17 |
Spring Clamp, 16mm
94513-16000
|
|||
| 18 |
Spring Clamp
94513-10000
|
|||
| 19 |
Secondary Oil Tank Bracket
55117-272-000
|
|||
| 20 |
Sponge Pad, 30*4*140
94701-3004140
|
