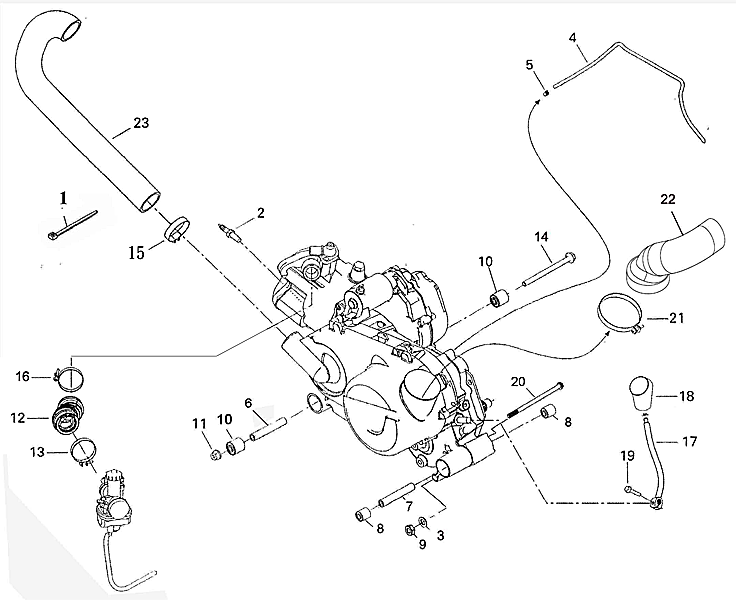

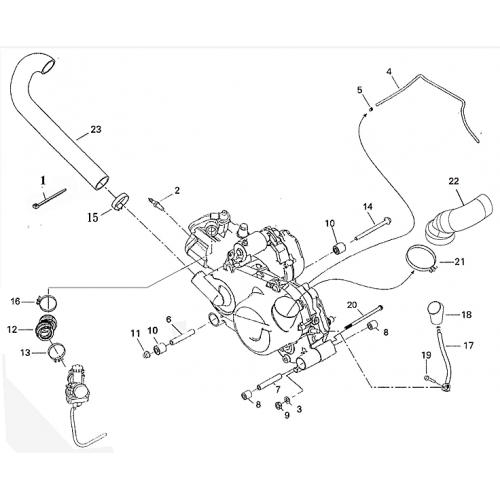

Engine and Engine Support (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cable Tie, 3.6*330 m/m
90669-218-000
|
|||
| 2 |
Spark Plug, CR8E
98076-179-000
|
$5.86 | ||
| 3 |
Copper Plain Washer, 10*20*2
94101-1020020G
|
$0.84 | ||
| 4 |
Transparent Pipe, 6*8*L350
94450-0608350
|
$4.76 | ||
| 5 |
Spring Clamp
94513-08000
|
$1.26 | ||
| 6 |
Front Crankcase Axle, 29mm
11150-179-000
|
$5.13 | ||
| 7 |
Rear Crankcase Axle
11151-261-000
|
$6.22 | ||
| 8 |
Rear Rubber Bush, 12*35*38
96400-123538
|
$14.83 | ||
| 9 |
Nylon Nut, 10mm*1.25
90350-10000C
|
$1.92 | ||
| 10 |
Rubber Bush, 12*35*35
96400-123535
|
$9.52 | ||
| 11 |
Hex Flange Nylon Nut, M12
90351-12000C
|
$2.85 | ||
| 12 |
Adaptor Carburator, REV.a
17253-179-000
|
$11.86 | ||
| 13 |
Hose Clamp
14110-179-000
|
$3.35 | ||
| 14 |
Hex Flange Bolt, 12*130
96000-12130-Z
|
$9.52 | ||
| 15 |
Clamp, #45
94514-45000
|
|||
| 16 |
Clamp
94516-48000
|
$3.91 | ||
| 17 |
Lever Welded Black
24701-261-000
|
$19.77 | ||
| 18 |
Lever Button
24702-179-000
|
$10.25 | ||
| 19 |
Hex Flange Bolt, M6*20
96000-06020-10C
|
$1.84 | ||
| 20 |
Hex Washer Face Bolt, 10*120
96000-10120-14G
|
$6.59 |
