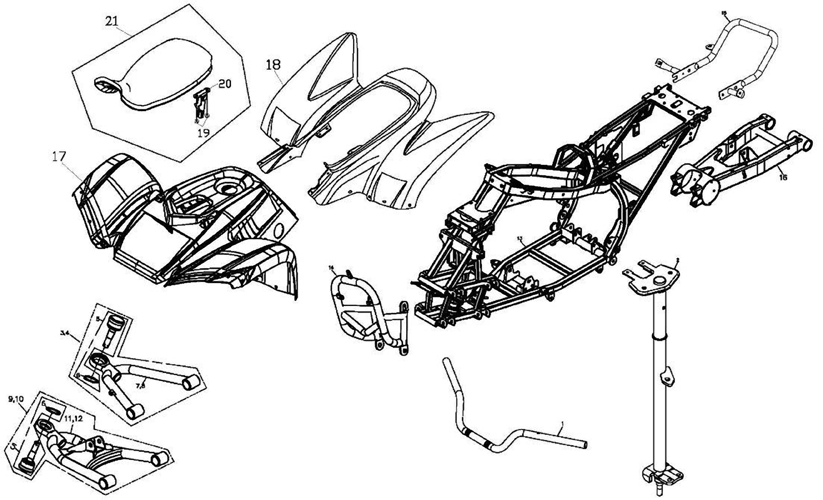

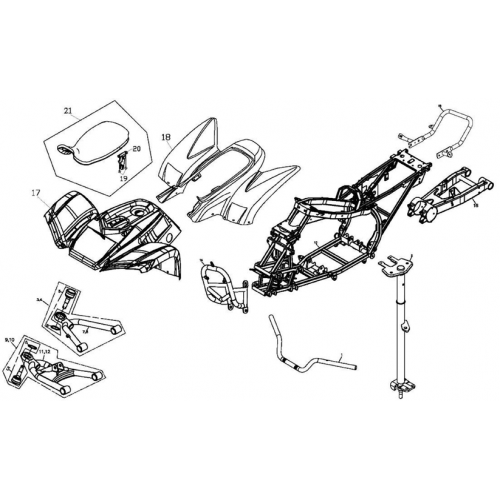

Accessory (Adly ATV 220S)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Handle Bar-(Silver)Us
53100-197-000SL
|
|||
| 2 |
Steering Shaft Ass'Y
51109-231-000SL
|
$97.33 | ||
| 3 |
R. Upper Suspension Arm Ass'Y
51210-256-000SL
|
$119.00 | ||
| 4 |
L. Upper Suspension Arm Ass'Y
51310-256-000SL
|
$119.00 | ||
| 5 |
Ball Joint
44540-256-000
|
$36.56 | ||
| 6 |
External Cir Clip, 27.9mm
94511-3000S
|
$2.01 | ||
| 7 |
R. Upper Suspension Arm
51200-256-000SL
|
$77.87 | ||
| 8 |
L. Upper Suspension Arm
51300-256-000SL
|
|||
| 9 |
R. Lower Suspension Arm
51610-256-000SL
|
|||
| 10 |
L. Lower Suspension Arm
51510-256-000SL
|
|||
| 11 |
R. Lower Suspension Arm
51600-256-000SL
|
|||
| 12 |
L. Lower Suspension Arm
51500-256-000SL
|
|||
| 13 |
Frame Comp
50100-261-002SL
|
|||
| 14 |
Front Bumper
50104-256-000SL
|
$72.69 | ||
| 15 |
Rear Bumper
50105-226-001SL
|
$56.73 | ||
| 16 |
Swing Arm Sub Ass'Y(Sl)
52100-261-001SL
|
$212.59 | ||
| 17 |
*****
64301-226-000BK
|
|||
| 18 |
Rear Cover
83400-261-000BK
|
|||
| 19 |
Nylon Nut, M6
90350-06000G
|
$0.84 | ||
| 20 |
Seat Latch
77201-169-000
|
$13.18 |
