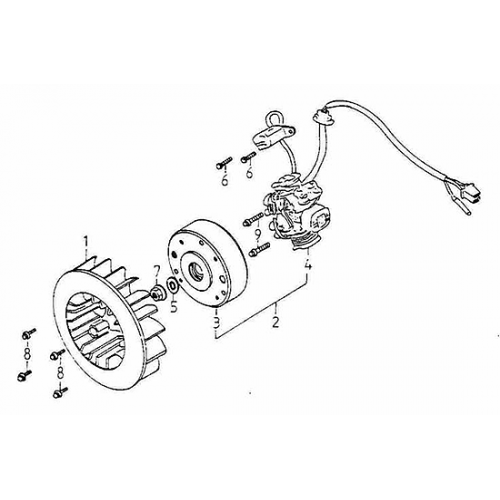

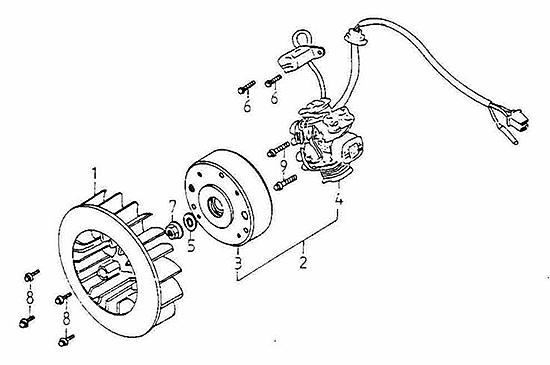

Generator (Adly ATV 150S Interceptor)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fan
19510-120-000
|
$13.69 | ||
| 2 |
Generator Ass'Y
31100-197-000
|
$181.90 | ||
| 3 |
Generator Flywheel
31110-197-000
|
|||
| 4 |
Stator Comp
31120-197-000
|
$97.33 | ||
| 5 |
Plain Washer, 12*25*2.3
94101-1225023A
|
$1.34 | ||
| 6 |
Hex Bolt, 5*12
92000-05012-08C
|
$0.67 | ||
| 7 |
Hex Flange Nut With Serration, 12mm
94050-12000C
|
$2.68 | ||
| 8 |
Hex Washer Face Bolt, 6*18
96000-06018-08C
|
$1.00 | ||
| 9 |
Hex Washer Face Bolt, 6*20
96000-06020-08C
|
$0.84 |
