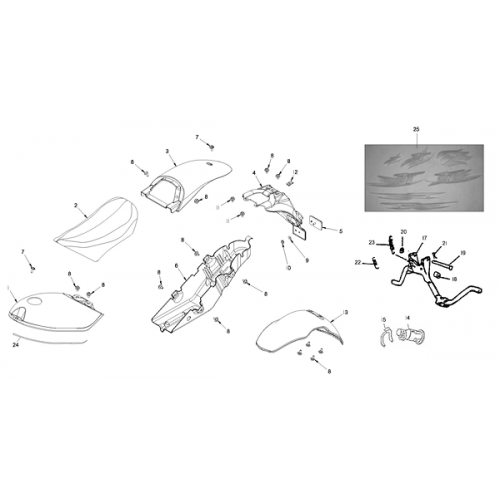

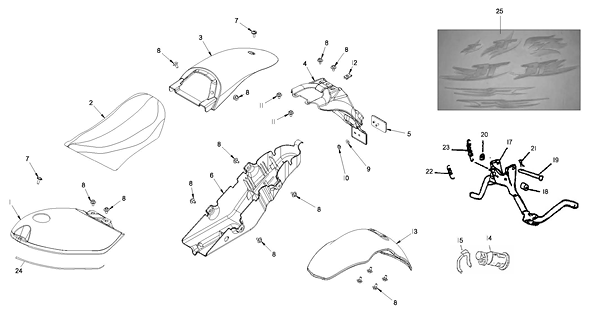

Front Fender, Body Cover (ADLY RT-50 Road Tracer)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Fuel Tank Outer Cover
64301-154-000
|
|||
| 2 |
RT-Road Tracer Motorcycle 50 Seat Assembly
77200-154-000
|
|||
| 3 |
Rear Cover, Available in Yellow
83400-154-000
|
|||
| 4 |
Rear Fender
80116-154-000
|
$15.69 | ||
| 5 |
Reflector
33741-105-00A
|
$7.32 | ||
| 6 |
Lower Body Cover
77207-158-000
|
$13.18 | ||
| 7 |
Pan Philps Bolt, 6*25
93800-06025S
|
$2.68 | ||
| 8 |
Ladder Bolt, 6*12*3.8
90111-06012-10K
|
$1.67 | ||
| 9 |
Plain Washer, 5*14*1
94101-0514010K
|
$0.75 | ||
| 10 |
Hex Nut, 5mm
94001-05000C
|
$0.67 | ||
| 11 |
Ladder Bolt, 6*12.5*3.5
90111-06012-18C
|
$1.51 | ||
| 12 |
U Plate Nut, 6mm
90344-0600A
|
$2.68 | ||
| 13 |
Front Fender
61100-154-000
|
$22.82 | ||
| 14 |
Seat Lock Ass'Y
77230-154-000
|
|||
| 15 |
Seat Lock Bracket
77235-154-000
|
|||
| 16 |
Pan Head Phillips Bolt M6 X 20
93800-06020S
|
$1.67 | ||
| 17 |
Main Stand Comp
50500-154-001
|
|||
| 18 |
Rubber Damper
95011-101-000
|
$1.47 | ||
| 19 |
Main Stand Fix Shaft, 10*76.8
50503-116-000
|
$5.86 | ||
| 20 |
Plain Washer, 10.5*18*0.5
94101-1018005A
|
$0.42 |
