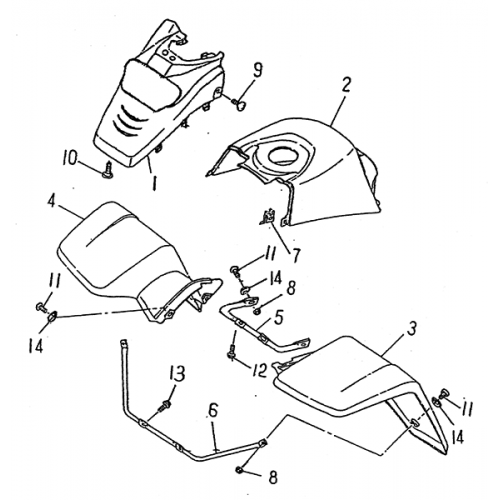

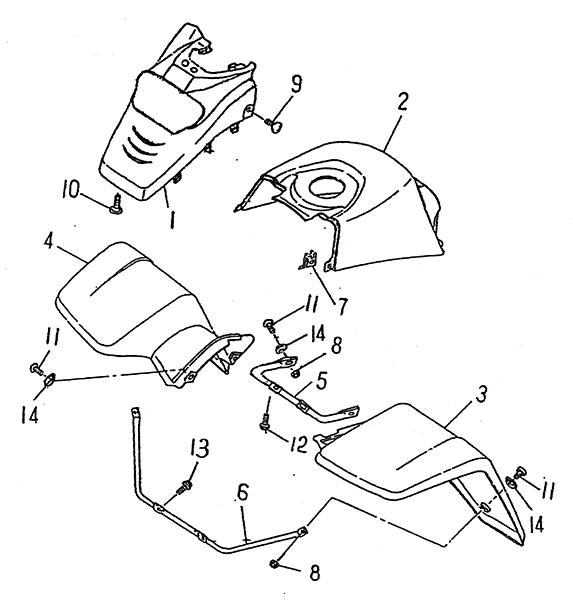

Front Fender (LRX/SMC Blast ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Panel, Front
51151-STG-00
|
$40.43 | ||
| 2 |
COVER, TOP (red, blue, yellow)
51532-RAM-00
|
$51.98 | ||
| 3 |
FENDER FRONT L (Red,Blue, Yellow)
51552-RAM-00
|
|||
| 4 |
FENDER, FRONT R (Red,Blue,Yellow)
51553-RAM-00
|
|||
| 5 |
STAY, FENDER UPPER
51554-RAM-00
|
$19.31 | ||
| 6 |
STAY, FENDER LOWER
51556-RAM-00
|
$20.08 | ||
| 7 |
NUT, SPRING
95101-05012
|
$0.28 | ||
| 8 |
NUT, FLANGE
95401-061006-B
|
$0.85 | ||
| 9 |
SCREW, TAPPING
96112-51216-K
|
$0.49 | ||
| 10 |
SCREW, PAN HEAD
96318-06012-B
|
$0.70 | ||
| 11 |
SCREW, PAN HEAD
96318-06015-B
|
$0.70 | ||
| 12 |
BOLT, FLANGE
96414-06012-B
|
$1.21 | ||
| 13 |
BOLT,FLANGE
96414-06016-B
|
$0.68 | ||
| 14 |
WASHER,FLANGE
97321-061825-B
|
$0.56 |
