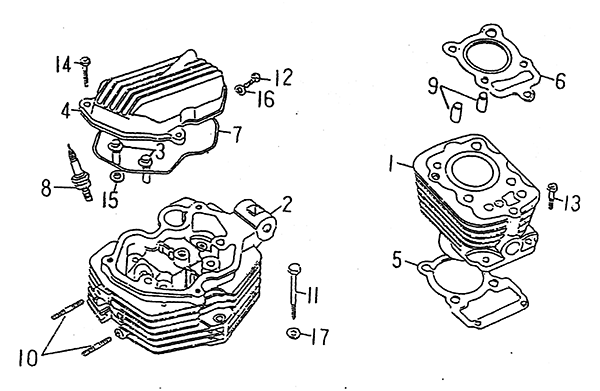

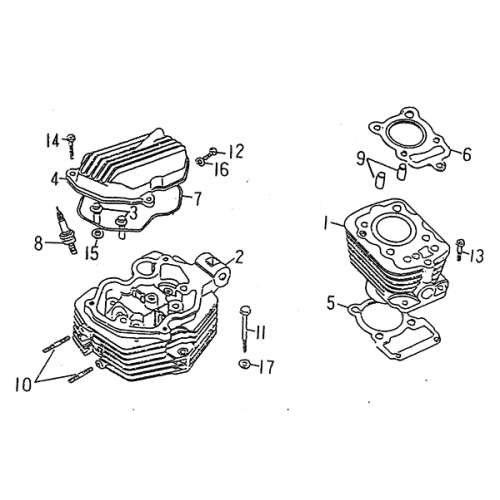

Cylinder (LRX/SMC Blast ATV 170)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
CYLINDER COMP
11111-STG-00
|
|||
| 2 |
HEAD COMP, CYLINDER
11121-STG-00
|
|||
| 3 |
NUT, CYLINDER HEAD
11127-CHP-00
|
$2.79 | ||
| 4 |
COVER, CYLINDER HEAD
11141-ROA-00
|
$44.42 | ||
| 5 |
GASKET, CYLINDER
11151-STG-00
|
$10.46 | ||
| 5 |
GASKET, CYLINDER <span style=
11151-CHI-00
|
$10.86 | ||
| 6 |
GASKET, CYLINDER HEAD
11181-STG-00
|
$15.06 | ||
| 6 |
GASKET, CYLINDER HEAD
11181-CHI-00
|
$15.06 | ||
| 7 |
GASKET, HEAD COVER
11191-CHP-00
|
|||
| 8 |
PLUG, SPARK (DR8EA NGK)
62210-CHP-00
|
$5.37 | ||
| 9 |
PIN, DOWEL 10*20
94410-10020
|
$1.74 | ||
| 10 |
BOLT, STUD 6*35
94717-06035-B
|
$1.39 | ||
| 11 |
BOLT, HEXAGON 8*79
96210-08079-B
|
$2.79 | ||
| 12 |
BOLT, FLANGE
96414-06012-B
|
$1.21 | ||
| 13 |
BOLT, FLANGE
96414-06022-B
|
$0.68 | ||
| 14 |
BOLT, FLANGE 6*28
96414-06028-B
|
$1.05 | ||
| 15 |
WASHER, PLATE 12.5*22*2.3
97201-122223-B
|
$1.05 | ||
| 16 |
WASHER, COPPER 6.4*12*1.2
97230-061212
|
$1.39 | ||
| 17 |
WASHER, COPPER 8.6*18*2.3
97230-081823
|
$1.79 |
