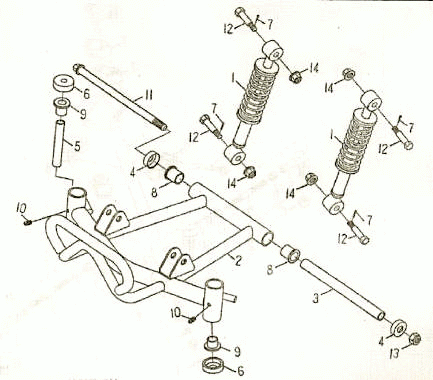

FRONT SUSPENSION (Kasea Skyhawk 50mini Quad)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
SHOCK ABSORBER ASS'Y
42126-SK2-00
|
$46.20 | ||
| 2 |
FRONT ARM
42161-SK2-01
|
$107.23 | ||
| 3 |
COLLAR
42173-RAM-00
|
$8.37 | ||
| 4 |
COVER, THRUST
42183-RAM-00
|
$4.17 | ||
| 5 |
COLLAR
45825-SK9-00
|
$5.58 | ||
| 6 |
COVER, THRUST
45827-SK9-00
|
$2.85 | ||
| 7 |
PIN COTTER 1.8*16
90240-18016-B
|
$0.35 | ||
| 8 |
BUSH, SOLID
93330-152118
|
$4.73 | ||
| 9 |
BUSH, SOLID
93330-172330
|
$7.17 | ||
| 10 |
NIPPLE, GREASE M6*P1.0
94340-06010-B
|
$0.70 | ||
| 11 |
BLOT, FLANGE
94610-10197-C
|
$5.58 | ||
| 12 |
BOLT
94716-08039-B
|
$1.38 | ||
| 13 |
NUT, NYLON
95311-101710-B
|
$1.26 | ||
| 14 |
NUT, FLANGE
95401-081208-B
|
$0.82 |
