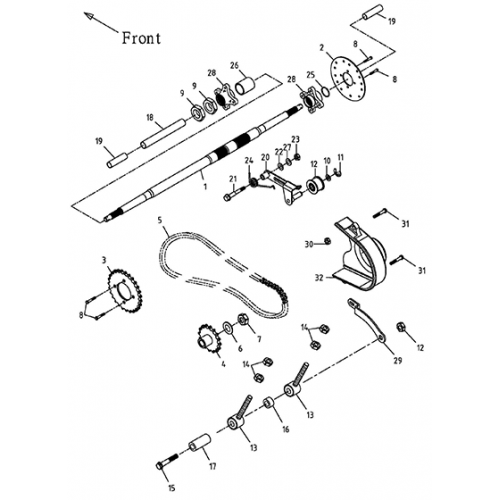

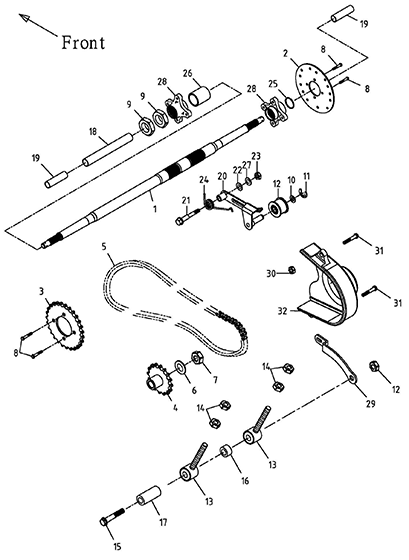

Rear Wheel Axle, Chain (Adly GK-125 (BK-125) 2005)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Rear Axle
42301-193-001
|
|||
| 2 |
Brake Disc
45015-168-000
|
$86.24 | ||
| 3 |
Rear Sprocket, 27T
41201-168-000
|
$31.63 | ||
| 4 |
Drive Sprocket Ass'Y, 16T
23801-193-001
|
$37.82 | ||
| 5 |
Drive Chain, 50*58L
40530-193-000
|
$49.17 | ||
| 6 |
Plain Washer, 15*29*3
94101-1529030
|
$1.15 | ||
| 7 |
Nylon Nut, 14mm
90350-14000
|
$1.67 | ||
| 8 |
Hex Washer Face Bolt, 8*20
96000-08020-12
|
$1.67 | ||
| 9 |
Hex Nut, M33*14*P1.5
94001-33140G
|
$10.98 | ||
| 10 |
Plain Washer, 12*18*1.2
94101-1218012
|
|||
| 11 |
External Cir Clip, ETW-10
94511-1000E
|
$1.00 | ||
| 12 |
Chain Roller
40537-193-000
|
$31.63 | ||
| 13 |
Chain Adjust Bolt
40536-193-000
|
$15.82 | ||
| 15 |
Hex Washer Face Bolt, 10*155
96000-10155-14
|
$12.19 | ||
| 16 |
Spacer
40519-193-000
|
$3.77 | ||
| 17 |
Spacer
40513-193-000
|
$3.84 | ||
| 18 |
Plastic Spacer, 275*35*1.5
40514-168-000
|
|||
| 19 |
Plastic Spacer, 110*30*1.5
40515-168-000
|
$3.35 | ||
| 20 |
Idle Sprocket Bracket
41204-193-001
|
$20.10 | ||
| 21 |
Idle Sprocket Shaft
41205-193-000
|
