Select Assembly

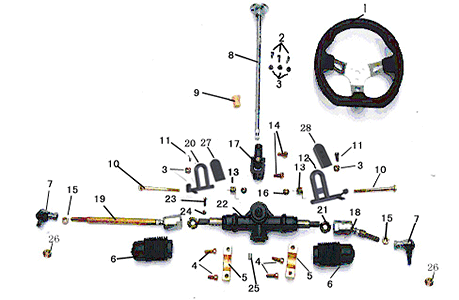

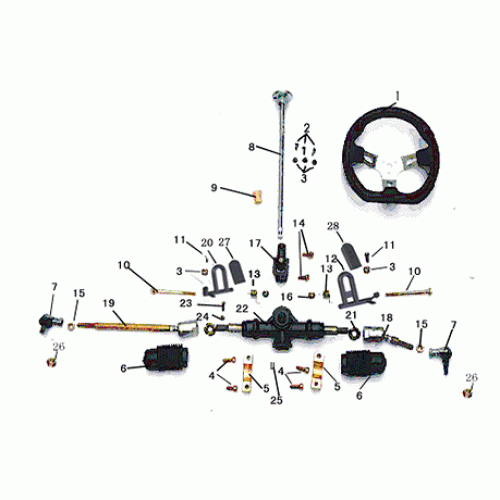

Steering Comp (Dazon Raider 90 2006 and Earlier)

Steering Comp (Dazon Raider 90 2006 and Earlier)
# Product Code: Product Name Req'd Price:
1 53100-BDD0-0000 Steering Comp. $70.17$93.56
2 96050-06018-0D Bolt, Socket-head M6*18 $0.35$0.46
3 90210-06B01-1B Lock Nut, Flange $0.78$1.04
4 96050-08025-0B Screw, Socket-head M8*20 $0.43$0.58
5 50103-BDA0-0000 Pressure Plate, Upper, Steering Gear $10.14$13.51
6 53250-BCA0-0000 Dust Cover , Ball Joint
7 55010-BDD0-0000 Ball, Steering Knuckle Left-hand Thread $17.15$22.87
8 53200-BDD0-0000 Shaft, Steering $23.39$31.19
9 53110-BDD0-0000 Bush, Steering Shaft $4.33$5.78
10 53391-BDD0-0001 Link Bolt, Pedal $2.08$2.77
11 95710-06020-0C Bolt, Flange $0.43$0.58
12 5331A-BDD0-0000 Pedal Comp., Brake $11.69$15.59
13 17695-BDD0-0000 Spring, Brake / Throttle Pedal Comp. $3.47$4.62
14 95710-08020-0B Bolt, Flange $0.43$0.58
15 94010-10B02-0A Lock Nut, Flange M10(Left-hand Thread) $0.22$0.29
16 90210-05B01-0C Lock Nut, Flange $0.43$0.58
17 53220-BDD0-0000 Steering Ball Joint, Steering Shaft $38.20$50.94
18 5323A-BDD0-0001 Ball Joint Comp.(Left ), Steering $19.49$25.99
19 5324A-BDD0-0010 Ball Joint Comp. (Right ), Steering DB Style(DAZON) $23.39$31.19
20 5332A-BDD0-0000 Pedal Comp., Throttle $11.69$15.59
Showing 1 to 20 of 28 (2 Pages)
