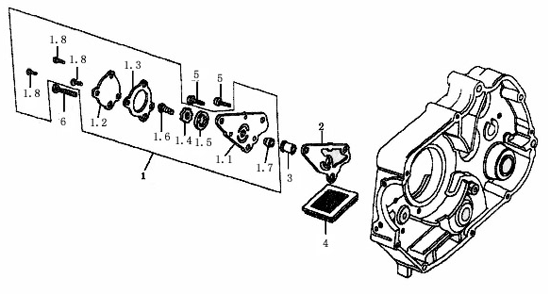

Oil Pump (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Pump Assy., Oil
15100-CDA1-0000
|
$18.11 | ||
| 1.1 |
Body, Pump Oil
15311-CDA1-0000
|
|||
| 1.2 |
Cover,Oil Pump
15321-CDA1-0000
|
|||
| 1.3 |
Gasket, Oil Pump Cover
15329-CDA1-0000
|
|||
| 1.4 |
Oil Pump Rotor, Inner
15331-CDA1-0000
|
|||
| 1.5 |
Oil Pump Rotor, Outer
15332-CDA1-0000
|
|||
| 1.6 |
Shaft, Oil Pump
15382-CDA1-0000
|
|||
| 1.7 |
Sleeve, Oil Pump Shaft
15383-CDA1-0000
|
|||
| 1.8 |
Screw
93600-05010-0A
|
$1.39 | ||
| 2 |
Gasket, Oil Pump
15119-CDA1-0000
|
|||
| 3 |
Sleeve, Oil Pump Sprocket
15384-CDA1-0000
|
|||
| 4 |
Screen, Oil Filter
15421-CDA1-0000
|
|||
| 5 |
Screw
93600-06014-0A
|
$0.35 | ||
| 6 |
Screw
93600-06022-0A
|
