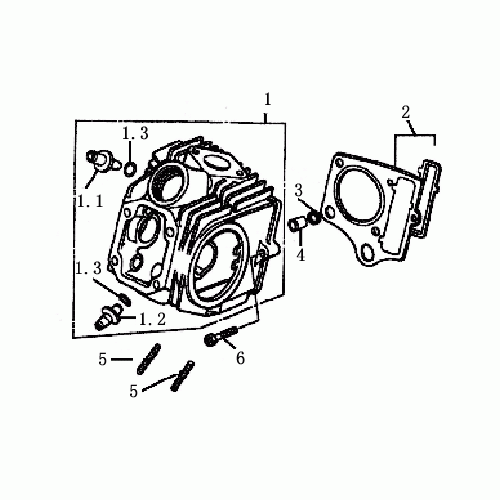

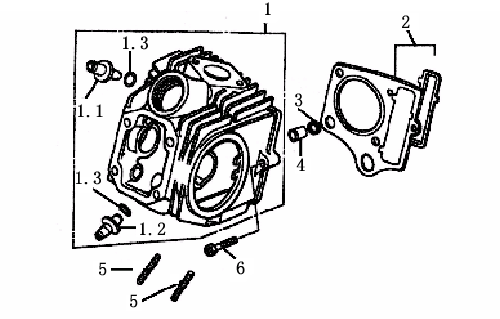

Cylinder Head (Dazon Raider 90 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Head Comp., Cylinder
12200-CDA1-0000
|
$91.43 | ||
| 1.1 |
Duct, Air-intake Valve
12237-CDA1-0000
|
|||
| 1.2 |
Duct, Air-exhaust Valve
12245-CDA1-0000
|
|||
| 1.3 |
O-Ring
91303-CDA1-0000
|
$1.20 | ||
| 2 |
Gasket, Cylinder Head
12251-CDA1-0000
|
|||
| 3 |
Seal, Square
91311-CDA1-0000
|
$1.39 | ||
| 4 |
Collar
12285-CDA1-0000
|
|||
| 5 |
Bolt, Stud
90033-CDA1-0000-0A
|
$1.05 | ||
| 6 |
Bolt
93220-06023-0A
|
$0.70 |
