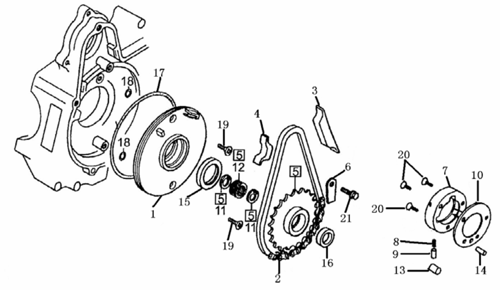

Starting Clutch (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Plate, Oil Separating
11321-CDA1-0000
|
$10.74 | ||
| 2 |
Chain, Starting
28101-CDA1-0000
|
$9.07 | ||
| 3 |
Guide, Starting Chain
28102-CDA1-0000
|
$1.95 | ||
| 4 |
Protector, Starting Chain
28103-CDA1-0000
|
$2.09 | ||
| 5 |
Sprocket Comp., Starting
28111-CDA1-0000
|
$26.36 | ||
| 6 |
Setting Plate, Starting Sprocket
28117-CDA1-0000
|
$0.98 | ||
| 7 |
Case Comp., Starting Clutch
28120-CDA1-0000
|
$22.59 | ||
| 8 |
Spring, Starting Clutch Roller
28125-CDA1-0000
|
|||
| 9 |
Cap, Spring
28126-CDA1-0000
|
|||
| 10 |
Side Panel,Starting Clutch
28128-CDA1-0000
|
|||
| 11 |
Circlip
94520-23000
|
|||
| 12 |
Bearing, Needle
91902-CDA1-0000
|
|||
| 13 |
Roller
91150-10100
|
|||
| 14 |
Roller
91150-05118
|
|||
| 15 |
Seal, Oil
91202-CDA1-0000
|
$6.28 | ||
| 16 |
Seal, Oil
91203-CDA1-0000
|
|||
| 17 |
O-ring
91307-CDA1-0000
|
|||
| 18 |
O-ring
91308-CDA1-0000
|
|||
| 19 |
Screw
93500-06016-0A
|
$0.28 | ||
| 20 |
Screw
93500-06014-0A
|
