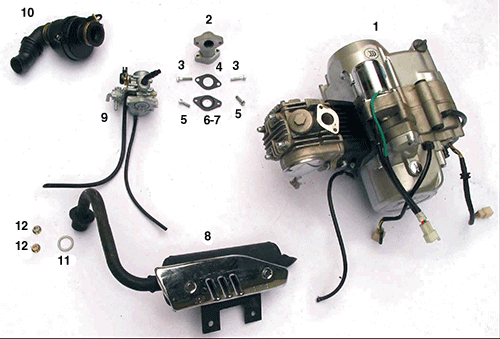

Engine Assy (Dazon Raider 90 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
|
Gasket , Heat Insulating
16210-CAA0-0000
|
$1.39 | |||
| 1 |
Engine Assy.
0005Z-CDA1-0000
|
|||
| 2 |
Tube,Air Inlet
17111-BDD0-0000
|
|||
| 3 |
Bolt, Flange
96010-06030-0D
|
$1.26 | ||
| 4 |
Gasket, Air Inlet Tube
17119-CAA0-0000
|
|||
| 5 |
Bolt, Flange
96010-06025-0D
|
|||
| 6 |
*
6 - ########
|
|||
| 7 |
*
7 - ########
|
|||
| 8 |
Muffler Assy.
1830A-BDD0-0000
|
$95.94 | ||
| 9 |
90cc Carburetor Assy. #15
1610A-CAA0-0000
|
|||
| 10 |
Air Cleaner Assy.
1720A-BDD0-0000
|
|||
| 11 |
Sealing Washer, Muffler Assy.
18291-WCA0-0000
|
$2.37 | ||
| 12 |
Nut,Muffler Assy.
90301-TBA0-0000-0D
|
