Transmission (Dazon Raider 250 Engine 2006+)

If the gearbox cover is broken, item 2, 3, 4 need to be replaced together with item 5.

Sort By:

Show:

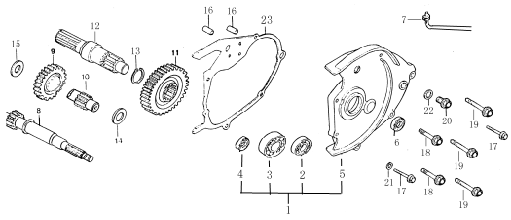

#	Product Name	Price:
1	Cover Comp., Gearbox 2130A-SCC0-0000
2	Bearing 96100-62220-T000	$23.85
3	Bearing ,Needle 91901-SCC0-0000	$18.83
4	Radial Ball Bearing, 6304 96100-63040	$17.43
5	Cover, Gearbox 21300-SCC0-0000
6	Seal ,Oil 91202-SCC0-0000	$11.30
7	Breather Pipe, Gearbox 11221-SCC0-0000
8	Shaft, Drive 23411-SCC0-0000	$104.43
9	Gear, Counter Shaft 23422-SCC0-0000	$57.49
10	Shaft, Counter 23421-SCC0-0000	$104.43
11	Gear, Final Shaft 23432-SCC0-0000	$92.69
12	Shaft, Final 23431-SCC0-0000	$92.69
13	Circlip 94510-23000-0E	$1.26
14	Washer,Stop 94110-14E01-ST	$2.09
15	Washer ,Stop 94110-14E02-ST	$2.09
16	Pin, Dowel 94310-10160
17	Bolt, Flange 96010-06030-0D	$1.26
18	Blot, Hex 90110-08028-0D	$1.74
19	Blot, Hex 90110-08035-0D	$1.74
20	Blot, Flange 96010-10010-0B	$1.74

Showing 1 to 20 of 23 (2 Pages)
