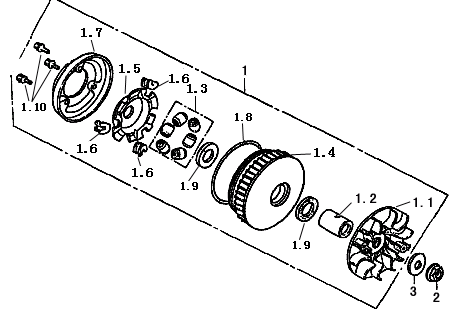

Drive Pulley (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
250cc Pulley Assy.,Drive
2201A-SCC0-0000
|
$99.73 | ||
| 1.1 |
Impeller, Drive Pulley
22031-SCC0-0000
|
|||
| 1.1 |
Screw, Panhead
93600-05010
|
|||
| 1.2 |
Spacer
22041-SCC0-0000
|
|||
| 1.3 |
Roller, Counterbalance
22051-SCC0-0000
|
$5.58 | ||
| 1.4 |
Drive Pulley, Right
22061-SCC0-0000
|
|||
| 1.5 |
Ramp
22071-SCC0-0000
|
|||
| 1.6 |
Side Piece, Ramp
22081-SCC0-0000
|
|||
| 1.7 |
Disc, Oil Seal
22091-SCC0-0000
|
|||
| 1.8 |
O-ring
91302-SCC0-0000
|
|||
| 1.9 |
Seal, Oil
91206-SBH0-0000
|
|||
| 2 |
Nut, Flange
94010-14E01-0D
|
$2.79 | ||
| 3 |
Washer,Stop
94110-14E01-ST
|
$2.09 |
