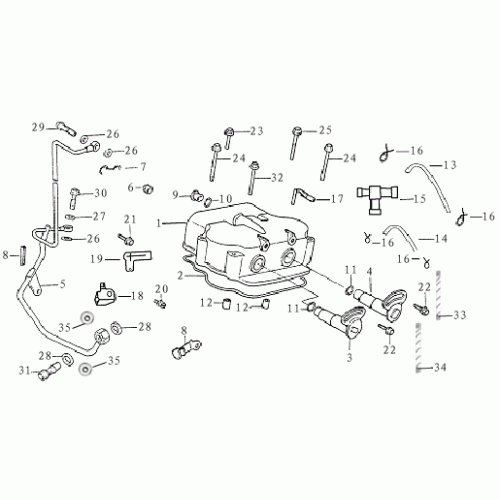

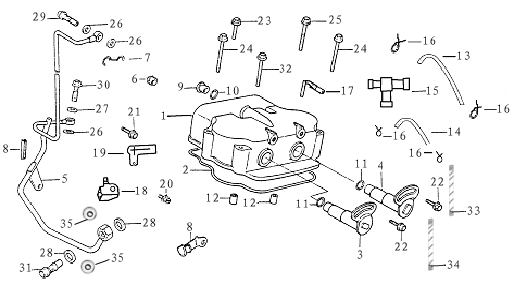

Cylinder Head Cover (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cover, Cylinder Head
12310-SCC0-0000
|
|||
| 2 |
Gasket, Cylinder Head Cover
12391-SCC0-0000
|
|||
| 3 |
Rocker Arm Shaft, Air-intake Valve
11450-SCC0-0000
|
|||
| 4 |
Rocker Arm Shaft, Air-exhaust Valve
11452-SCC0-0000
|
|||
| 5 |
Tube, Fuel
15710-SCC0-0000
|
$5.43 | ||
| 6 |
Plug, Choke
12311-SCC0-0000
|
|||
| 7 |
Clip B,Fuel Tube
15712-SCC0-0000
|
|||
| 8 |
Clip, Breather Tube
12312-SCC0-0000
|
|||
| 9 |
Cap,A.C. G.
90036-CAA0-0000
|
|||
| 10 |
O-ring
91306-CAA0-0000
|
$0.70 | ||
| 11 |
O-ring
91301-SCC0-0000
|
|||
| 12 |
Pin, Dowel
94310-10160
|
|||
| 13 |
Air Tube, Air Cleaner
11231-SCC0-0000
|
|||
| 14 |
Air Tube, Cylinder Head Cover
11211-SCC0-0000
|
|||
| 15 |
Air Tube, Three-way
11250-SCC0-0000
|
|||
| 16 |
Clamp
19605-SCC0-0000
|
|||
| 17 |
Breather, Cylinder Head Cover
12309-SCC0-0000
|
|||
| 18 |
Bracket, Air Cleaner
12313-SCC0-0000
|
|||
| 19 |
Plate ,Pressure
11342-SCC0-0000
|
|||
| 20 |
Screw, Panhead
93600-05018-0D
|
$1.81 |
