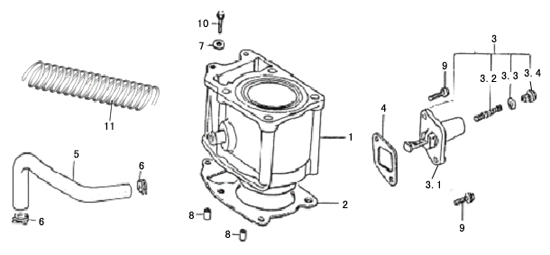

Cylinder (Dazon Raider 250 Engine 2006+)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Cylinder Kit for 250cc w Piston
12100-SCC0-0000
|
$197.35 | ||
| 2 |
Gasket, Cylinder
12191-SCC0-0000
|
$8.37 | ||
| 3 |
Dazon Go Kart Chain Adjustor Comp
14550-SBA0-0000
|
|||
| 3.1 |
Adjuster, Chain
14551-SBA0-0000
|
|||
| 3.2 |
Spring
14552-SBA0-0000
|
|||
| 3.3 |
O-ring
14553-SBA0-0000
|
|||
| 3.4 |
Bolt
14554-SBA0-0000
|
|||
| 4 |
Gasket, Chain Adjustor
14555-SBA0-E000
|
|||
| 5 |
Rubber Pipe, Water Inlet
19502-SCC0-0000
|
$15.06 | ||
| 6 |
Clamp
11263-SCC0-1000
|
$5.58 | ||
| 7 |
Washer,Aluminium
94110-06E01-AL
|
|||
| 8 |
Pin, Dowel
94310-10160
|
|||
| 9 |
Bolt, Flange
96010-06018-0D
|
|||
| 10 |
Bolt, Flange
96010-06022-0D
|
$1.26 | ||
| 11 |
Spring, Water-intake Rubber Pipe
19161-SCC0-0000
|
$4.18 |
