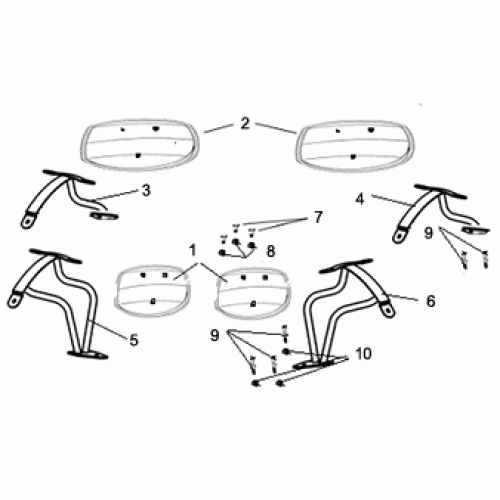

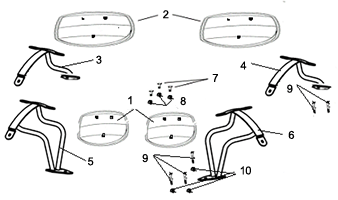

Mudguard (Dazon Raider 250 2005 and Older)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 3 |
Left Bracket, Rear Mudguard
50260-BDE0-0000
|
|||
| 4 |
Right Bracket, Rear Mudguard
50270-BDE0-0000
|
|||
| 5 |
Left Bracket, Front Mudguard
50240-BDE0-0000
|
|||
| 6 |
Right Bracket, Front Mudguard
50250-BDE0-0000
|
|||
| 9 |
Bolt, Flange
95710-08020-1B
|
|||
| 10 |
Lock Nut,Flange
90210-08B01-2B
|
