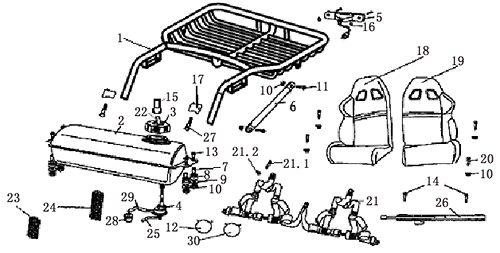

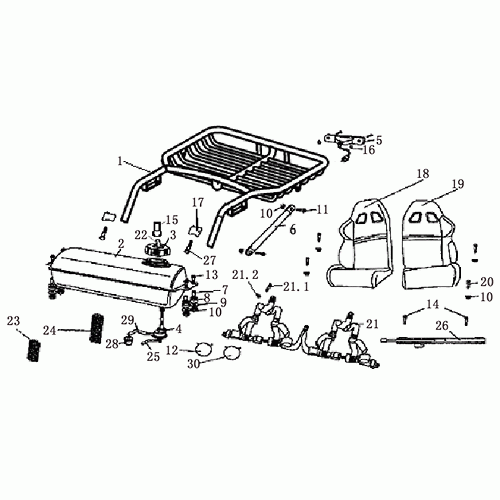

Seat/Carrier/Fuel Tank (Dazon Raider 150 2006 and Earlier)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1-2 |
Carrier Comp., Rear
82101-BCA1-0000
|
|||
| 1-1 |
Carrier Comp., Rear
82101-BCA1-0010
|
|||
| 2 |
Fuel Tank Comp.
17510-BCC0-0000
|
|||
| 3 |
Cap, Fuel Tank Comp.
17620-BCC0-0002
|
|||
| 4 |
Petcock, Fuel Tank Comp.
16950-BDE0-0000
|
|||
| 5 |
Taillamp
33701-BCC0-0000
|
|||
| 6 |
Brace, Rear Carrier Support
82102-BCD1-0000
|
|||
| 7 |
Inner Collar, Fuel Tank
17519-BCA0-0000-0C
|
|||
| 8 |
Rubber Spacer, Fuel Tank
17518-BCA0-0000
|
|||
| 9 |
Washer, Flat
94110-08B01-0C
|
$0.28 | ||
| 10 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 11 |
Bolt, Flange
95710-08025-0C
|
|||
| 12 |
Circlip, Air Tube
95002-TCB0-0000
|
$0.21 | ||
| 13 |
Bolt, Flange
95710-08030-0C
|
$1.05 | ||
| 14 |
Bolt, Flange
95710-08016-1B
|
$1.05 | ||
| 15 |
Valve, Check
17686-BCA0-0000
|
$8.37 | ||
| 16 |
Lock Nut, Flange
90210-05B01-0C
|
|||
| 17 |
Bolt, Flange
95710-08058-1B
|
$1.74 | ||
| 18-1 |
seat, l
77210-BCD0-0000
|
$342.67 | ||
| 18-2 |
seat, l
77210-BCD1-0000
|
$342.67 |
