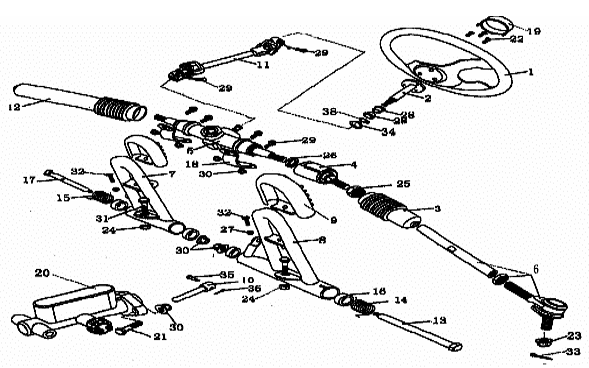

Steering Shaft Assy (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Steering Comp.
53100-BCA0-0000
|
$69.23 | ||
| 2 |
Shaft, Steering
53200-BCB0-0000
|
$25.10 | ||
| 3 |
Dust Cover , Ball Joint
53250-BCA0-0000
|
|||
| 4 |
Ball Joint, Steering
53220-BCA0-0000
|
$35.15 | ||
| 5 |
Gearbox, Steering
53210-BCB0-0000
|
|||
| 6 |
Tie Rod, R.
5324A-BCA0-0000
|
|||
| 7 |
Pedal Comp., Throttle
5331A-BCA0-0000
|
|||
| 8 |
Pedal Comp., Brake
5332A-BCA0-0000
|
|||
| 9 |
Pad, Rubber
53350-BCA0-0000
|
|||
| 10 |
Push Rod, Master
45536-BCA0-0010-0C
|
|||
| 11 |
Joint Knuckle, Steering
53260-BCB0-E000
|
|||
| 12 |
Dust Cover, Ball Joint, Right
53251-BCB0-0000
|
|||
| 13 |
Bolt, Brake Pedal
53391-BCA0-0000-0C
|
$11.85 | ||
| 14 |
Spring, Brake Pedal
53392-BCA0-0000
|
$1.39 | ||
| 15 |
Spring, Throttle Pedal
53394-BCA0-0000
|
|||
| 16 |
Collar, Pedal
53331-BCA0-0000
|
$5.44 | ||
| 17 |
Bolt, Throttle
53393-BCA0-0000-0C
|
$8.37 | ||
| 18 |
Bracket, Steering Gear
53218-BCA0-0000
|
$5.58 | ||
| 19 |
Bolt Cover, Steering
53109-BCA0-0000
|
|||
| 20 |
Cylinder Comp., Master
45530-BCA0-0000
|
$89.24 |
