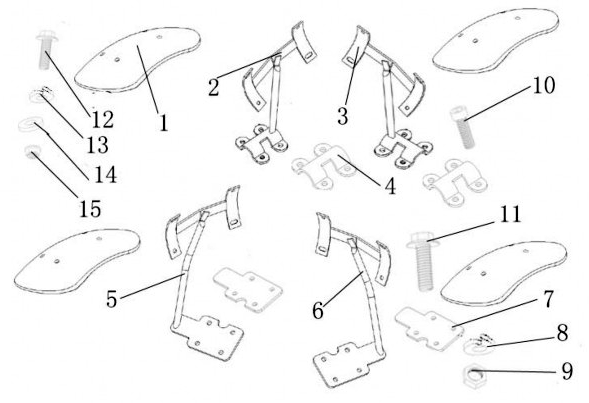

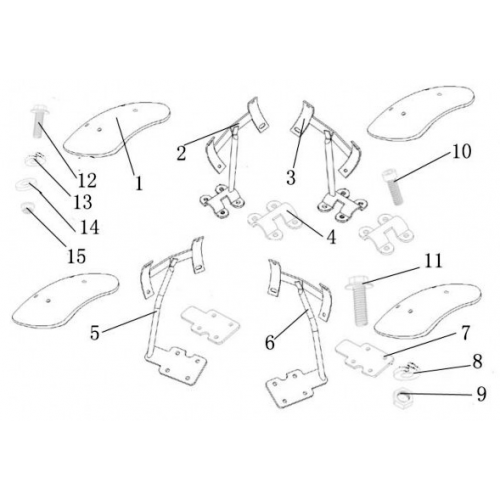

Mudguard Assy (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Mud Guard
50195-BCA0-0000
|
$20.08 | ||
| 2 |
L. Supporter, Fr. Mud Guard
50196-BCA0-0002
|
|||
| 3 |
R. Supporter, Fr. Mud Guard
50197-BCA0-0002
|
|||
| 4 |
Mounting Plate, Fr. Mud Guard Supporter
50198-BCA0-0000
|
|||
| 5 |
L. Supporter, Rr. Mud Guard
50198-BCA0-0001
|
|||
| 6 |
R. Supporter, Rr. Mud Guard
50199-BCA0-0001
|
|||
| 7 |
Rear Mudguard Bracket Mounting Plate, 2
50292-BCA0-0000
|
|||
| 8 |
Washer, Spring
94120-08B01-0C
|
$0.21 | ||
| 9 |
Nut, Hex
94010-08B01-0C
|
$0.42 | ||
| 10 |
Screw, Socket-head M8*20
96050-08025-0B
|
$0.70 | ||
| 11 |
Bolt, FlangeM8*50
95710-08050-0B
|
$1.39 | ||
| 12 |
Bolt, Flange
95710-06010-0C
|
|||
| 13 |
Washer, Spring
94120-06B01-0C
|
$0.21 | ||
| 14 |
flat washer 6.5×18×1.6
94110-07B01-0C
|
|||
| 15 |
Lock Nut,Flange
90210-06B01-0C
|
$0.70 |
