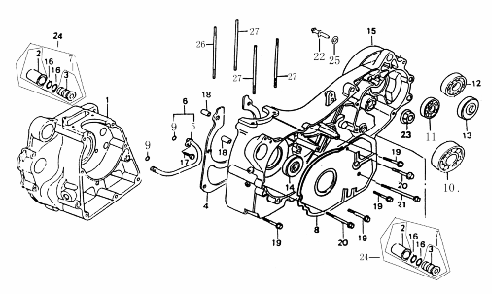

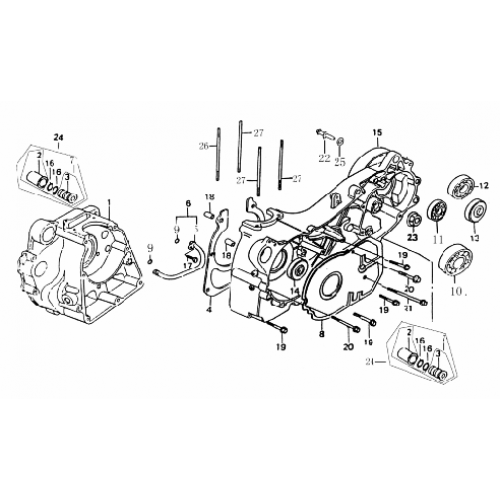

Crankcase (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 2 |
Outer Sleeve, Front Shock Absorber
11112-SBH0-0000
|
|||
| 3 |
Inner Sleeve, Front Shock Absorber
11113-SBH0-0000
|
|||
| 4 |
Gasket, Crankcase Left/Right
11192-SBH0-0000
|
|||
| 5 |
Pipe Comp, Oil Pass
15520-SBH0-0000
|
|||
| 6 |
Pipe Assy., Oil Pass
1552A-SBH0-0000
|
|||
| 7 |
Sleeve Comp., Front Shock Absorber
11111-SBH0-0000
|
|||
| 8 |
Shroud, L Cover
11350-SBH0-0000
|
|||
| 9 |
O-Ring 9x1.6
91303-CAA0-0000
|
|||
| 10 |
Bearing
96100-63010
|
|||
| 11 |
Bearing, Needle NK1412
91901-SBH0-0000
|
|||
| 12 |
Bearing, Radial Ball 6004LU
96100-60040-N000-LU
|
|||
| 13 |
Oil Seal 27x42x7
91204-SBA0-0000
|
|||
| 14 |
Oil Seal
91202-SBH0-0000
|
|||
| 15 |
Crankcase, R.
11200-SDA0-0000
|
|||
| 16 |
O-ring
91302-SBH0-0000
|
|||
| 17 |
Bolt, Flange
96010-06012-0D
|
|||
| 18 |
Pin, Dowel
94310-10160
|
|||
| 19 |
Bolt, Flange
96010-06060-0D
|
|||
| 20 |
Bolt, Flange
96010-06100-0D
|
|||
| 21 |
Bolt, Flange
96010-06125-0D
|
