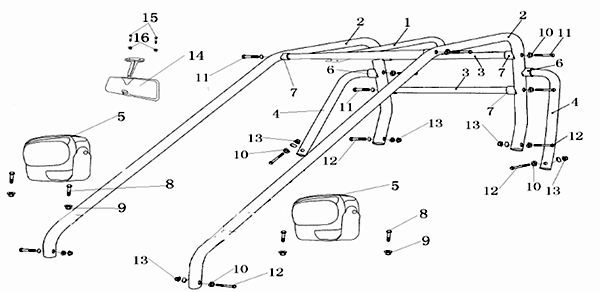

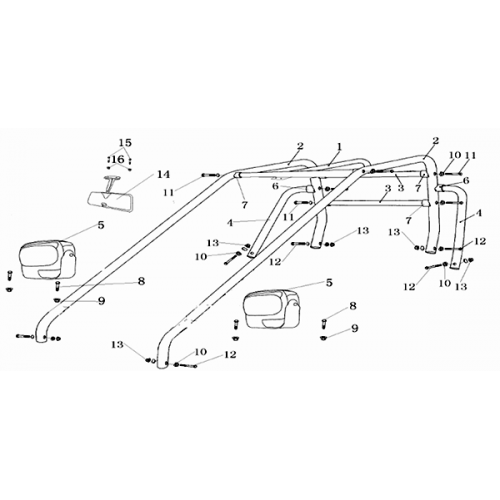

Brush Guard Bar (Dazon Buggy 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Protective Bar, Fr.
50160-BCD0-0000
|
|||
| 2 |
Brush Guard Bar, Long, Left/Right
50110-BCD0-0000
|
|||
| 3 |
Brush Guard Bar,Center Rear
50150-BCD0-0000
|
|||
| 4 |
Protective Bar
50130-BCD0-0000
|
|||
| 5 |
Headlamp
33120-BCA0-E000
|
|||
| 6 |
Bush, Brush Guard Bar
50128-BCA0-0000
|
|||
| 7 |
Bush, Brush Guard Bar
50129-BCA0-0000
|
|||
| 8 |
Bolt, Flange
95710-05016-0C
|
|||
| 9 |
Lock Nut, Flange
90210-05B01-0C
|
|||
| 10 |
R-washer
50199-BCA0-0000-0C
|
|||
| 11 |
Bolt,Flange
95710-08055-1B
|
|||
| 12 |
Bolt, Flange
95710-08050-1B
|
|||
| 13 |
Lock Nut,Flange
90210-08B01-1B
|
|||
| 14 |
Rearview Mirror, Inner
88130-BCC0-0000
|
|||
| 15 |
Bolt, Flange
95710-06020-0C
|
|||
| 16 |
Lock Nut,Flange
90210-06B01-0C
|
$0.70 |
