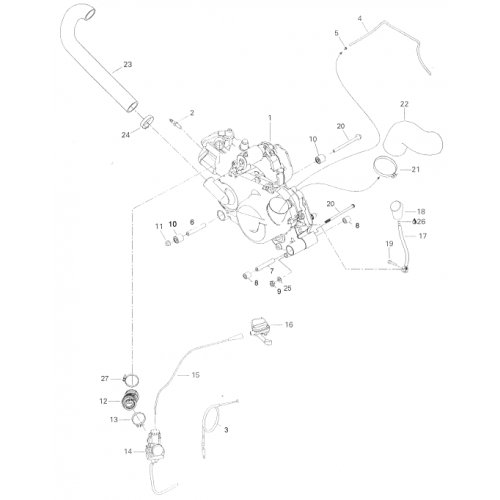

Engine Support (Bombardier Rally 175)
Change Assembly
| # | Product Name | Req'd | Price: | |
|---|---|---|---|---|
| 1 |
Engine 175 Cc
A84100179000
|
|||
| 2 |
Spark Plug Ngk Cr8E
707000306
|
|||
| 3 |
Choke Cable
A17950179000
|
|||
| 4 |
Polyurethane Hose 5.2 Mm
415110000
|
|||
| 5 |
Spring Clamp
414554800
|
|||
| 6 |
Front Crankcase Axle
A11150179000
|
$5.13 | ||
| 7 |
Rear Crankcase Axle
A11151179000
|
|||
| 8 |
Rear Bushing
A96400123538
|
|||
| 9 |
Elastic Flanged Nut M10
232501416
|
|||
| 10 |
Rear Bushing
A96400123535
|
|||
| 11 |
Elastic Flange Nut M12
A9035112000
|
|||
| 12 |
Carburetor Adaptor
707000195
|
|||
| 13 |
Clamp
293650151
|
|||
| 14 |
Carburetor
A16100179000
|
|||
| 15 |
Throttle Cable
707000318
|
|||
| 16 |
Throttle Handle
709400142
|
|||
| 17 |
Shifter Lever
A24701179000
|
|||
| 18 |
Lever Button
A24702179000
|
$10.25 | ||
| 19 |
Hex Flanged Screw M6 X 30
207663044
|
|||
| 20 |
Hex Flanged Screw
A9600010158
|
